| Model | AVL-ID236R |
|---|---|
| Size | 15.7inch, 23.6inch, 5inch |
| Resolution | 1280*1280 |
| Touch | Capacitive touch screen |
| Brightness | 1500nits, 700nits |
| Operating system | Android 9/11/13/14, HDMI input, Windows 10/11 Pro |
| Color | Black, RAL color option, White |
| Application | Indoor |
| Production Time | 3-5 days |
24inch Round LCD Display PCAP Touch Screen, 1280*1280 high resolution, brightness 700nits to 1500nits, HDMI input or Android or Windows OS operating system, send inquiry now!
Avlink 23.6inch large round LCD display, maintain standard LCD performance characteristics while offering unique radial geometry for specialized applications, including digital signage, game, art gallery, events, science museum etc.
Circular LCD display deliver unmatched versatility, serving diverse applications from eye-catching digital signage to immersive gaming interfaces, innovative product designs, and rugged industrial environments
The circular format unlocks innovative content possibilities, transforming standard messaging into captivating visual experiences that boost audience engagement.
Featuring 1280*1280 resolution, modern circular LCD digital signage deliver exceptional pixel density for razor-sharp imagery and legible text, even at close viewing distances.
Comprehensive Solution Statement:
We provide fully customizable circular display solutions with adjustable
Avlink Circular LCD displays offer versatile integration, compatible with standard mounts, embedded systems, and custom enclosures for seamless implementation across industries.
| Specifications | ||
| TFT Panel | ||
| Model No. | AVL-ID236R | |
| Panel size | 23.6 inch TFT-LCD | |
| Display area(mm)/mode | 600.4*600.4 | |
| Maximum resolution | 1280*1280 | |
| Aspect ratio | 1:1 | |
| Display colour | 16.7M | |
| Brightness (nits) | 700 nits to 1500 nits | |
| Contrast | 1000:1 | |
| Visual angle | 178°/178° | |
| Response time | 6ms | |
| Life(hrs) | >60,000(hrs) | |
| Touch (optional) | PCAP | |
| Interface(optional) | HDMI input | |
| Operating system (optional) | ||
| System | Android 8.0/9.0/11.0 | |
| RAM | 2G/4G | |
| ROM | 16G/32G | |
| Interface | RJ-45, USB | |
| Operating system (optional) | ||
| System | Windows 10/11 pro, i5/i7, generation 4th/6th/12th | |
| RAM | 4G/8G | |
| SSD | 128G/256G | |
| Interface | RJ-45, USB | |
| Appearance | ||
| Colour/appearance | Black, white, customized RAL | |

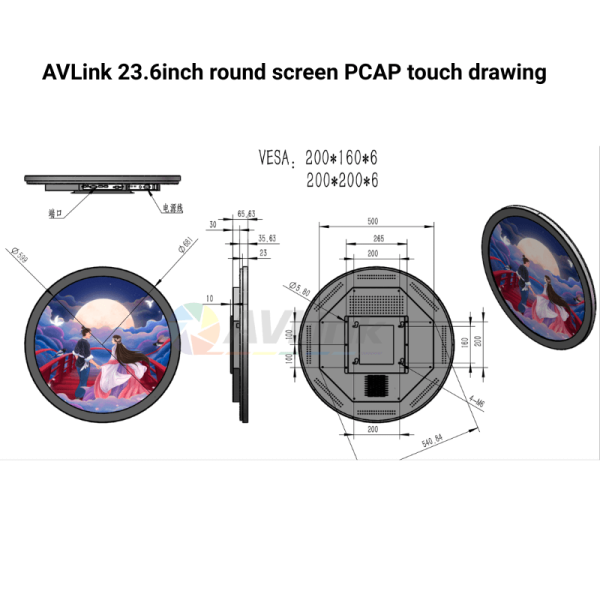

| Monitor dimension (mm) | 657*657*45.85 | |
| Case | Metal or aluminium | |
| Installation | Wall-mounted | |
| Weight | 10kg/15kg | |
| Electricity | ||
| Power supply | AC110~240V 50 /60 HZ | |
| Maximum power consumption | 120W | |
| Standby Power consumption | <3W | |
| Speaker | 2×8Ω 5W | |
| Temperature | ||
| Working temperature | 0℃～40℃ | |
| Storage temperature | -10℃~60℃ | |
| Working humidity | 85% | |
| Storage humidity | 85% | |
Shenzhen Avlink Technology is a leading manufacturer specializing in high-quality digital signage and innovative display solutions. With a 4,000-square-meter factory and a dedicated R&D team of 6 experts, we deliver customized digital display screens tailored to your unique needs—providing design drawings within just 1 day.
Comprehensive Product Range – Offering 1,000+ digital advertising screens, including:
Fast Production & Global Reach
3 days lead time for quick delivery
10+ years of export experience, shipping to 70+ countries
Certified with COO, CE-LVDS, CE-EMC, FCC, RoHS, CSA, and KC, SGS, Bureau Veritas
End-to-End Support
On-site installation services for seamless deployment, available in Israel, Italy, France, Netherlands, Germany, Sweden, Switzerland, USA, Canada, Mexico, Oman, Dubai, China Macau, China Hong Kong etc.
24/7 after-sales support to ensure uninterrupted operation
Avlink combines cutting-edge technology, rapid production, and reliable service to power your digital advertising screens with excellence
