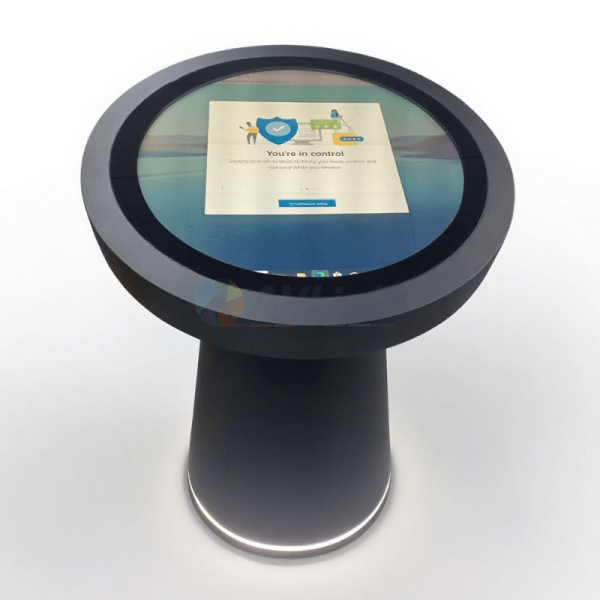

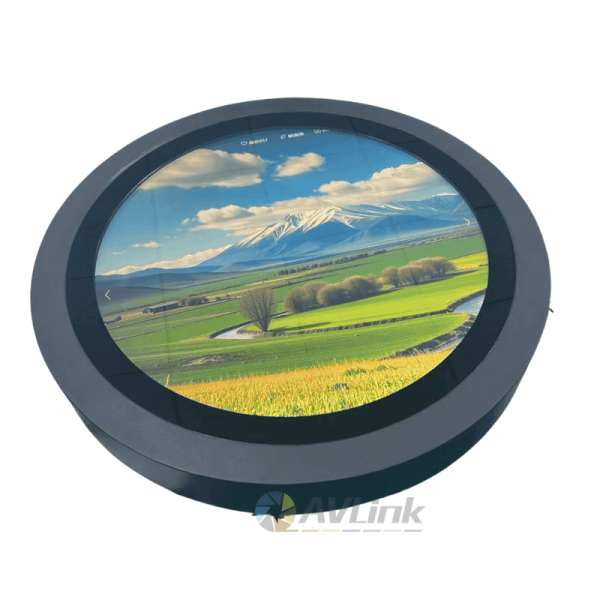

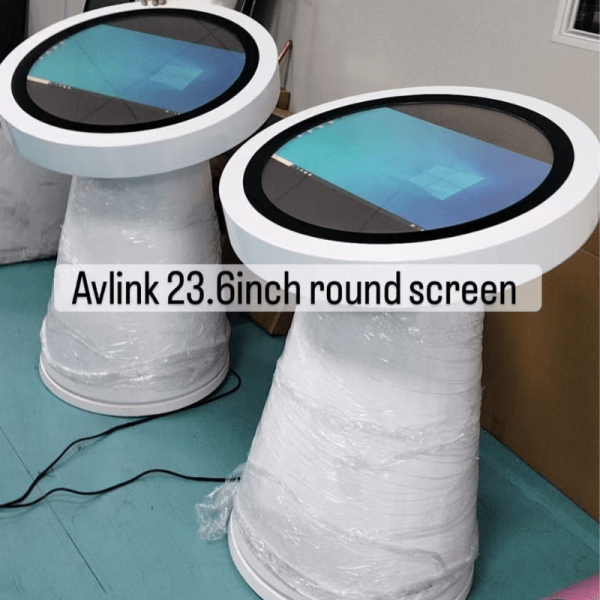

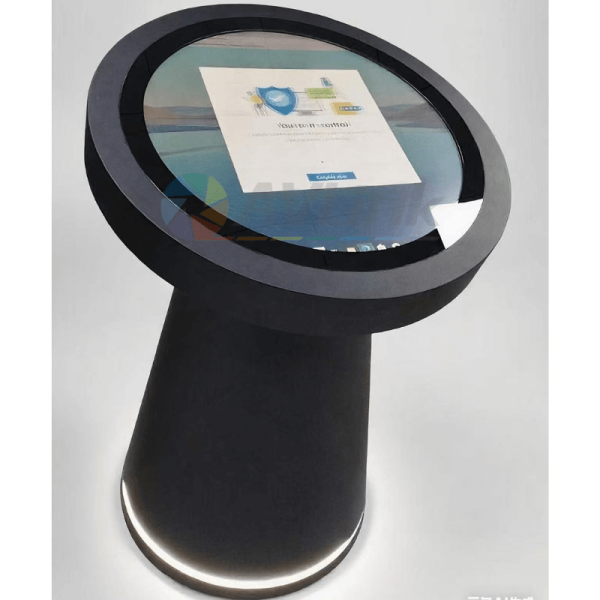

24 inch Round LCD Display Circular Touch Kiosk Key Features
| Model | AVL-ID236R |
|---|---|
| Size | 15.7inch, 23.6inch, 5inch |
| Resolution | 1280*1280 |
| Touch | Capacitive touch screen |
| Brightness | 1500nits, 700nits |
| Operating system | Android 9/11/13/14, HDMI input, Windows 10/11 Pro |
| Color | Black, RAL color option, White |
| Application | Indoor |
| Production Time | 10-15 days |
24 inch Round LCD Display Circular Touch Kiosk, 1280*1280 high resolution, brightness 700nits to 1500nits, HDMI input or Android or Windows OS, PCAP touch screen
Introducing the AVL-ID236R: The 24-Inch Round Display – Where Innovation Meets Form
Break free from the conventional with the AVL-ID236R – a stunning 24-inch circular display that redefines visual communication. This isn’t just another screen; it’s a statement piece that combines cutting-edge technology with elegant design, creating a focal point that captivates and engages like no rectangular display can.
Key Features:
Unique Circular Design: A perfect 1:1 aspect ratio with 1280×1280 resolution delivers a harmonious viewing experience, ideal for artistic installations, brand statements, and immersive environments.
Sunlight-Readable Brilliance: With brightness options ranging from 700 to an impressive 1500 nits, this display maintains crystal-clear visibility even in direct sunlight or brightly lit spaces.
Premium Build Quality: Choose between sleek metal or lightweight aluminum casing, available in custom RAL colors to seamlessly blend with any aesthetic.
Versatile Connectivity: Optional Android or Windows OS integration provides flexibility for everything from simple media playback to complex interactive applications.
Space-Saving Elegance: At just 45.85mm deep, this display mounts flush to walls, creating a sophisticated look that enhances rather than intrudes on your space.
Perfect Applications:
Luxury retail showcases and brand experiences
Interactive museum exhibits and art installations
High-end corporate lobbies and reception areas
Architectural design elements and wayfinding
Hospitality venues and entertainment spaces
Why Choose the Circular Display:
In a world of rectangles, the AVL-ID236R stands apart. Its circular form isn’t just visually striking – it creates natural sight lines that draw viewers in, making it perfect for displaying radial content, circular logos, or creating immersive environments that conventional screens can’t achieve.
The Future of Visual Design:
This isn’t just a display – it’s a canvas for innovation. The AVL-ID236R transforms ordinary spaces into extraordinary experiences, proving that when it comes to digital displays, thinking outside the rectangle creates the most memorable moments.
| Specifications | ||
| TFT Panel | ||
| Model No. | AVL-ID236R | |
| Panel size | 23.6 inch TFT-LCD | |
| Display area(mm)/mode | 600.4*600.4 | |
| Maximum resolution | 1280*1280 | |
| Aspect ratio | 1:1 | |
| Display colour | 16.7M | |
| Brightness (nits) | 700 nits to 1500 nits | |
| Contrast | 1000:1 | |
| Visual angle | 178°/178° | |
| Response time | 6ms | |
| Life(hrs) | >60,000(hrs) | |
| Touch(optional) | PCAP | |
| Interface(optional) | HDMI input | |
| Operating system (optional) | ||
| System | Android 8.0/9.0/11.0 | |
| RAM | 2G/4G | |
| ROM | 16G/32G | |
| Interface | RJ-45, USB | |
| Operating system (optional) | ||
| System | Windows 10/11 pro, i5/i7, generation 4th/6th/12th | |
| RAM | 4G/8G | |
| SSD | 128G/256G | |
| Interface | RJ-45, USB | |
| Appearance | ||
| Color/appearance | Black, white, customized RAL | |

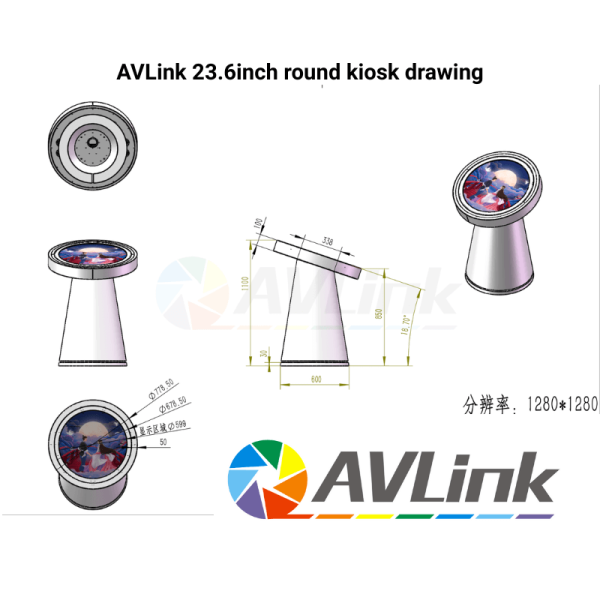

| Monitor dimension (mm) | 657*657*45.85 | |
| Case | Metal or aluminium | |
| Installation | Wall-mounted | |
| Weight | 10kg/15kg | |
| Electricity | ||
| Power supply | AC110~240V 50 /60 HZ | |
| Maximum power consumption | 120W | |
| standby power consumption | <3W | |
| Speaker | 2×8Ω 5W | |
| Temperature | ||
| Working temperature | 0℃～40℃ | |
| Storage temperature | -10℃~60℃ | |
| Working humidity | 85% | |
| Storage humidity | 85% | |
