Avlink 16 inch Round LCD Display Android Digital Signage Key Features
| Model | AVL-ID157R |
|---|---|
| Color | Black, RAL color option, White |
| Application | Indoor |
| Size | 15.7inch, 23.6inch, 5inch |

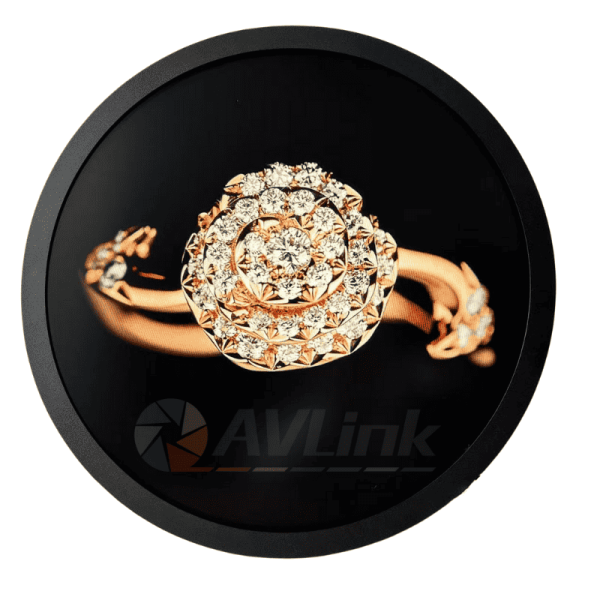

16inch round LCD display, 960*960 resolution, high brightness 700nits, equipped with HDMI input or Android or Windows OS, PCAP touch available, send inquiry now!
Round LCD displays maintain standard LCD performance characteristics while offering unique radial geometry for specialized applications, including digital signage, game, art gallery, events, science museum etc.
Circular LCD display deliver unmatched versatility, serving diverse applications from eye-catching digital signage to immersive gaming interfaces, innovative product designs, and rugged industrial environments
The circular format unlocks innovative content possibilities, transforming standard messaging into captivating visual experiences that boost audience engagement.
Featuring 960*960 resolution, modern circular LCD digital signage deliver exceptional pixel density for razor-sharp imagery and legible text, even at close viewing distances.
Comprehensive Solution Statement:
We provide fully customizable circular display solutions with adjustable
Avlink Circular LCD displays offer versatile integration, compatible with standard mounts, embedded systems, and custom enclosures for seamless implementation across industries.
| Specifications | ||
| TFT Panel | ||
| Model No. | AVL-ID157R | |
| Panel size | 15.7 inch TFT-LCD | |
| Display area(mm)/mode | 400*400 | |
| Maximum resolution | 960*960 | |
| Aspect ratio | 1:1 | |
| Display color | 16.7M | |
| Brightness (nits) | 700nits | |
| Contrast | 1000:1 | |
| Visual angle | 178°/178° | |
| Response time | 6ms | |
| Life(hrs) | >60,000(hrs) | |
| Touch(optional) | PCAP | |
| Interface | HDMI input | |
| Operating system (optional) | ||
| System | Android 11.0 | |
| RAM | 2G/4G | |
| ROM | 16G/32G | |
| Interface | RJ-45, USB | |
| Appearance | ||
| Colour/appearance | Black, white, customized RAL | |
| Monitor dimension (mm) | 452.95*452.95*55.5 | |
| Case | Metal | |
| Installation | Wall-mounted or embedded | |
| Weight | 5.44kg | |
| Electricity | ||
| Power supply | AC110~240V 50 /60 HZ | |
| Maximum power consumption | 80W | |
| Standby Power consumption | <3W | |
| Speaker | 2×8Ω 5W | |
| Temperature | ||
| Working temperature | 0℃～40℃ | |
| Storage temperature | -10℃~60℃ | |
| Working humidity | 85% | |
| Storage humidity | 85% | |
