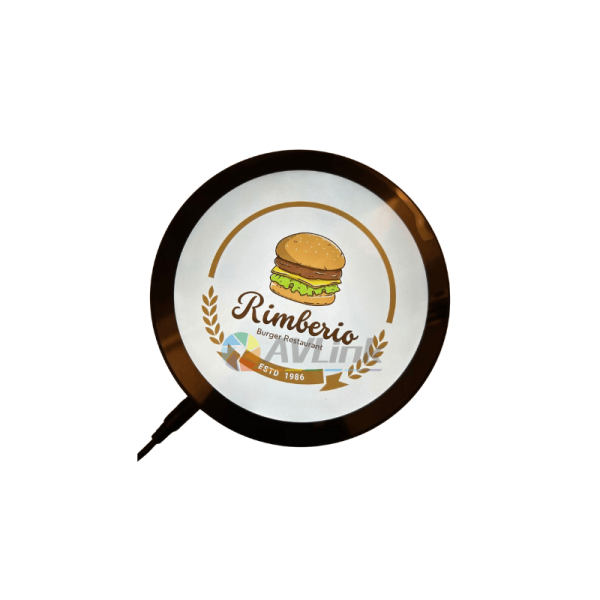

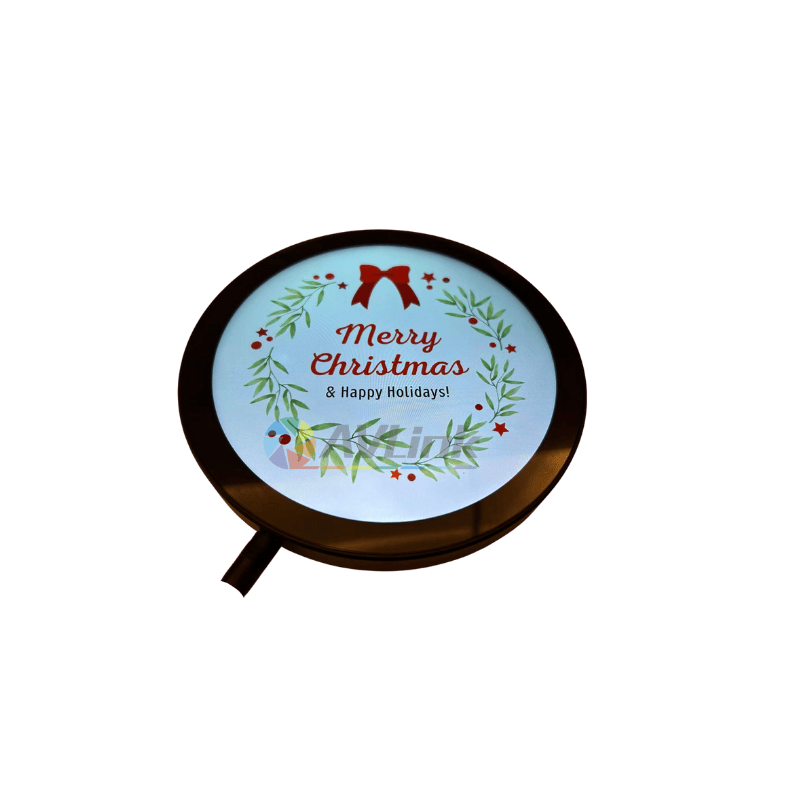

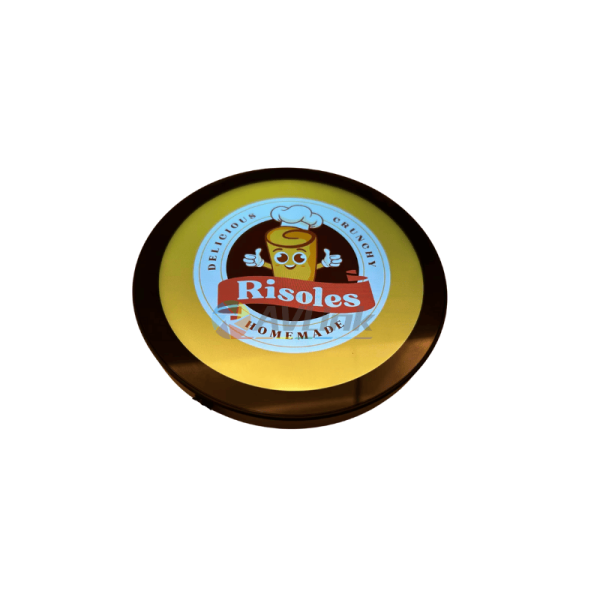

AVLink 5 inch Round LCD Display Circular Touch Screen Key Features
| Model | AVL-ID005R |
|---|---|
| Size | 15.7inch, 23.6inch, 5inch |
| Resolution | 1280*1280 |
| Touch | Capacitive touch screen |
| Brightness | 350nits |
| Operating system | Android 9/11/13/14, HDMI input |
| Color | Black |
| Application | Indoor |
| Production Time | 3-5 days |
5inch Round LCD Display Circular Touch Screen, 1080*1080 high resolution, brightness 350nits, HDMI input or Android operating system, round monitor factory China, contact now!

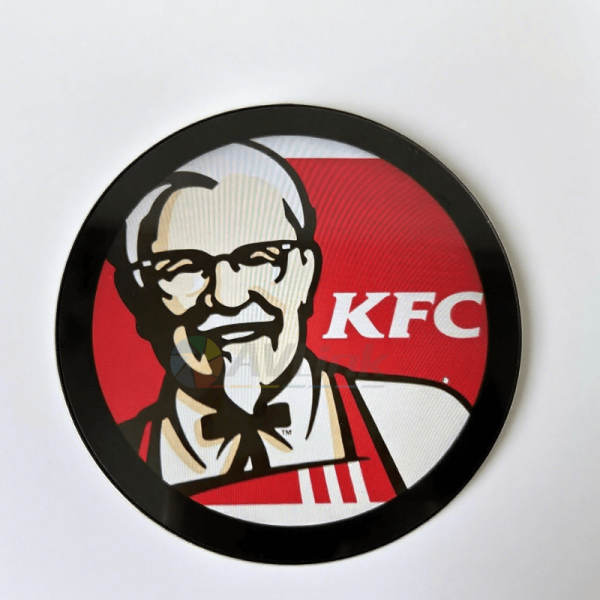

Meet the AVL-ID005R, a sleek and versatile 5-inch circular TFT-LCD designed for seamless integration into modern interactive devices. Despite its compact size, it delivers a crisp 1080×1080 resolution and vibrant 16.7 million colors within a space-saving 1:1 aspect ratio.
Key Features:
High Clarity & Wide Viewing Angle: 350 nits brightness and 178° ultra-wide angle ensure clear visibility from any angle.
Modern Connectivity: Features Type-C power and data transfer, with built-in Bluetooth and Wi-Fi for effortless wireless control.
Interactive Capability: Optional Projected Capacitive (PCAP) touch support enables intuitive user interaction.

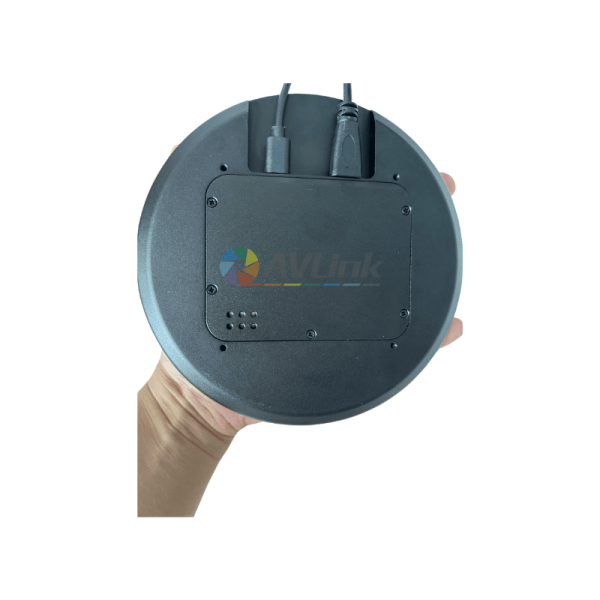

Slim & Durable Design: With a remarkably slim 14mm profile and a robust metal casing, it’s built for both elegance and endurance in wall-mounted or embedded applications.
Ideal for smart home controls, wearable tech, premium industrial dashboards, and interactive kiosks, this powerful little screen is the perfect blend of minimalist design and high performance.
We provide fully customizable circular display solutions with adjustable
Avlink Circular LCD displays offer versatile integration, compatible with standard mounts, embedded systems, and custom enclosures for seamless implementation across industries.
| Specifications | ||
| TFT Panel | ||
| Model No. | AVL-ID005R | |
| Panel size | 5 inch TFT-LCD | |
| Display area(mm)/mode | 127*127 | |
| Maximum resolution | 1080*1080 | |
| Aspect ratio | 1:1 | |
| Display colour | 16.7M | |
| Brightness (nits) | 350 nits | |
| Contrast | 1000:1 | |
| Visual angle | 178°/178° | |
| Response time | 6ms | |
| Life(hrs) | >60,000(hrs) | |
| Touch(optional) | PCAP | |
| Interface(optional) | HDMI input | |
| Operating system (optional) | ||
| System | Android 11.0 | |
| RAM | 2G | |
| ROM | 16G | |
| Interface | Type C, support Bluetooth, Wi-Fi | |
| Appearance | ||
| Colour/appearance | Black | |

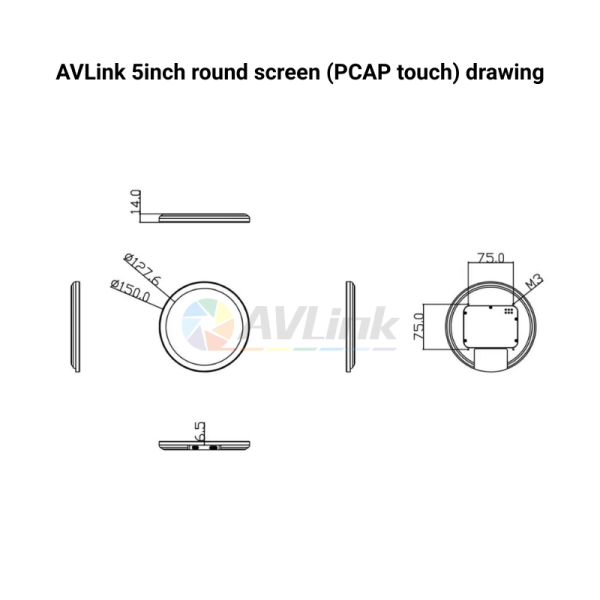

| Monitor dimension (mm) | 150*150*14 | |
| Case | Metal | |
| Installation | Wall-mounted or embedded | |
| Weight | 0.8kg | |
| Electricity | ||
| Power supply | Type C | |
| Temperature | ||
| Working temperature | 0℃～40℃ | |
| Storage temperature | -10℃~60℃ | |
| Working humidity | 85% | |
| Storage humidity | 85% | |
Shenzhen Avlink Technology is a leading manufacturer specializing in high-quality digital signage and innovative display solutions. With a 4,000-square-meter factory and a dedicated R&D team of 6 experts, we deliver customized digital display screens tailored to your unique needs—providing design drawings within just 1 day.
Comprehensive Product Range – Offering 1,000+ digital advertising screens, including:
Fast Production & Global Reach
3 days lead time for quick delivery
10+ years of export experience, shipping to 70+ countries
Certified with COO, CE-LVDS, CE-EMC, FCC, RoHS, CSA, and KC, SGS, Bureau Veritas
End-to-End Support
On-site installation services for seamless deployment, available in Israel, Italy, France, Netherlands, Germany, Sweden, Switzerland, USA, Canada, Mexico, Oman, Dubai, China Macau, China Hong Kong etc.
24/7 after-sales support to ensure uninterrupted operation
Avlink combines cutting-edge technology, rapid production, and reliable service to power your digital advertising screens with excellence
