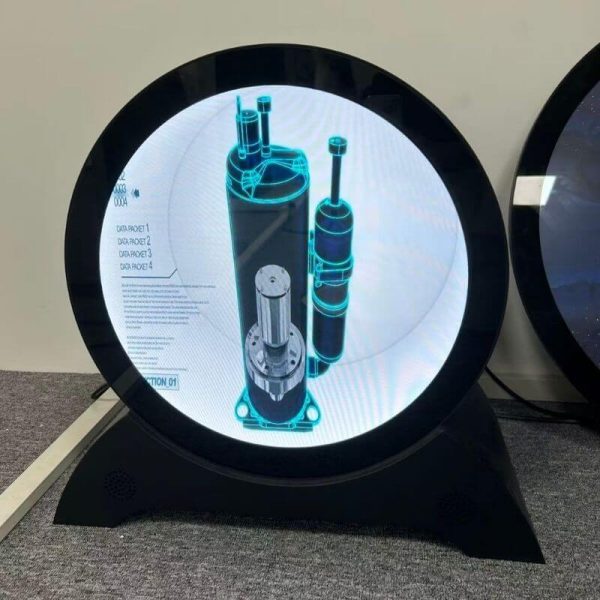

24 inch 16 inch Round LCD Display Transparent Holobox Key Features
| Model | AVL-ID236R |
|---|---|
| Size | 15.7inch, 23.6inch |
| Resolution | 1280*1280, 960*960 |
| Touch | Capacitive touch screen |
| Brightness | 1500nits, 700nits |
| Operating system | Android 9/11/13/14, HDMI input, Windows 10/11 Pro |
| Color | Black, RAL color option, White |
| Application | Indoor |
| Production Time | 10-15 days |
24 inch Round LCD Display Transparent Holobox, holographic display, 1280*1280 high resolution, brightness 700nits, HDMI input or Android or Windows OS, PCAP touch screen
Stunning Transparent Holographic Experience
The core highlight of this display is its premium transparent design, delivering lifelike floating hologram visuals without extra glasses. It seamlessly overlays digital content on real backgrounds, creating a futuristic see-through effect and an immersive spatial viewing experience to capture audience attention instantly.
23.6 Inch Round Ultra-Slim Form Factor
Custom circular 23.6-inch outline breaks traditional rectangular display limits. The sleek, stylish round shape adapts to diverse space layouts, ideal for high-end retail, exhibition halls, brand showcases, and premium interior decoration.
1280×1280 High-Definition Resolution
Built-in square high-precision resolution ensures sharp, delicate image details, balanced color reproduction, and smooth dynamic playback. It presents clear texts, 3D holographic videos, and creative content for refined visual output.
700 Nits High Brightness Performance
Featuring 700 nits ultra-high brightness, the screen maintains outstanding visibility and color clarity even in strong ambient light, indoor highlights or semi-outdoor environments. No glare or color fading for all-day stable display.
Responsive Multi-Point PCAP Touch
Equipped with advanced Projected Capacitive (PCAP) touch technology, it supports multi-point interactive control. With ultra-sensitive response, anti-fingerprint and durable touch performance, it enables smooth human-computer interaction for inquiry, browsing and interactive marketing.
Versatile & Scenario-Adaptive Design
Lightweight and easy to install with flexible mounting options. The transparent holographic structure retains environmental permeability, perfectly matching glass windows, curved installations, smart stores, museum displays and brand image projects.
Avlink is the leading factory of round LCD screen!
We provide fully customizable circular display solutions with adjustable
| Specifications | |||
| TFT Panel | |||
| Model No. | AVL-ID236RH | ||
| Panel size | 23.6inch TFT-LCD | ||
| Display area(mm)/mode | 600(H) × 600(V) | ||
| Maximum resolution | 1280*1280 | ||
| Display color | 16.7M | ||
| Brightness (nits) | 700cd/㎡ | ||
| Contrast | 1000:1 | ||
| Visual angle | 178°/178° | ||
| Response time | 6ms | ||
| Life(hrs) | >60,000(hrs) | ||
| Touch | PCAP 10 points touch screen | ||
| Operating system (optional) | |||
| Operating system | Android 11.0, RK3566 | ||
| RAM | 4G | ||
| ROM | 32G | ||
| Interface | USB, LAN, wifi | ||
| Appearance | |||
| Color/appearance | White, black, customized | ||
| Case | Metal | ||

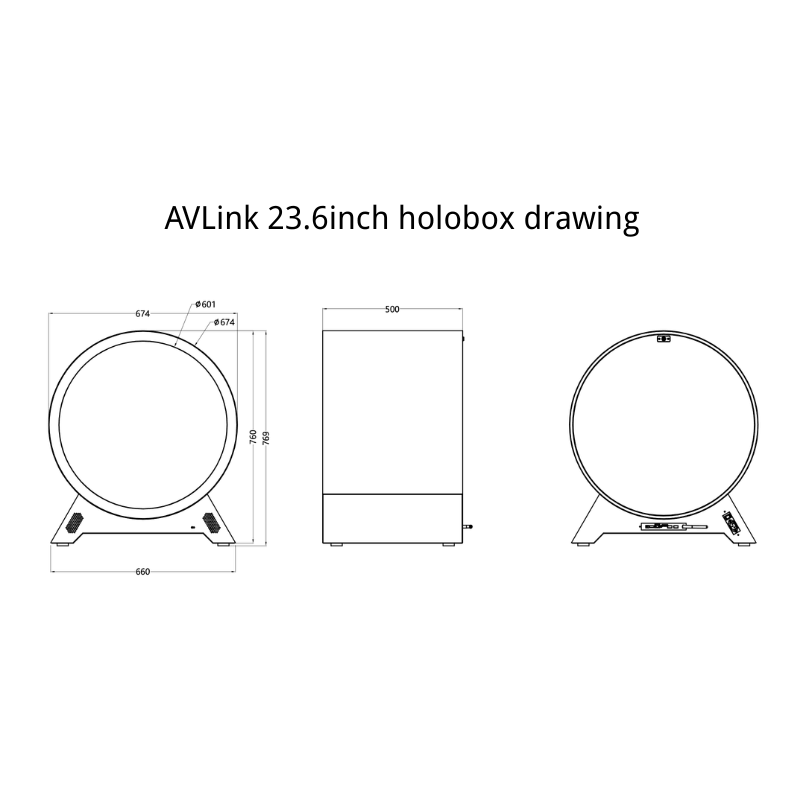

| Dimension(L*W*D)mm | 674*769*500mm | ||
| Weight | 45kg | ||
| Electricity | |||
| Power supply | AC100~240V 50 /60 HZ | ||
| Maximum power consumption | <80W | ||
| Speaker | 8Ω 5W*2 | ||
| Temperature | |||
| Working temperature | 0℃～40℃ | ||
| Storage temperature | -10℃~60℃ | ||
| Working humidity | 85% | ||
| Storage humidity | 85% | ||
Shenzhen Avlink Technology is a leading manufacturer specializing in high-quality digital signage and innovative display solutions. With a 4,000-square-meter factory and a dedicated R&D team of 6 experts, we deliver customized digital display screens tailored to your unique needs—providing design drawings within just 1 day.
Comprehensive Product Range – Offering 1,000+ digital advertising screens, including:
Fast Production & Global Reach
3 days lead time for quick delivery
10+ years of export experience, shipping to 70+ countries
Certified with COO, CE-LVDS, CE-EMC, FCC, RoHS, CSA, and KC, SGS, Bureau Veritas
End-to-End Support
On-site installation services for seamless deployment, available in Israel, Italy, France, Netherlands, Germany, Sweden, Switzerland, USA, Canada, Mexico, Oman, Dubai, China Macau, China Hong Kong etc.
24/7 after-sales support to ensure uninterrupted operation
Avlink combines cutting-edge technology, rapid production, and reliable service to power your digital advertising screens with excellence
