86 inch Waterproof IP66 Outdoor Digital Signage Display

75 inch High Bright IP66 Outdoor Digital Signage Display

Category Full Outdoor Display

Avlink 86 inch Waterproof IP66 Outdoor Digital Signage Display Key Feature

✅ 3000 nits CE/FCC/ROHS-verified high brightness, readable in direct sunlight

✅ IK10 impact resistance

✅ IP66 dust/water protection, Fully Enclosed System

✅ High Tni industrial panel for for high 221°F (105°C) LCD panel temperature operation

✅ Hidden fans against humidity and condensation

✅ Embedded Android Huidu player for simple content management

✅ Supports 24/7 operation for outdoor commercial advertising

Additional information

Model	AVL-OD860
Size	32inch, 43inch, 49inch, 55inch, 65inch, 75inch, 86inch
Resolution	19201080, 38402160
Color	Black, RAL color option, White
Operating system	Android 9/11/13/14, HDMI input, Windows 10/11 Pro
Application	Outdoor
Production Time	20-25 days

Product Details

86 inch Waterproof IP66 Outdoor Digital Signage Display & dustproof, IK10 impact resistance, and 3000 nits sunlight-readable screen, 24/7 content playback.

86 inch Waterproof IP66 Outdoor Digital Signage Display Display Product Overview

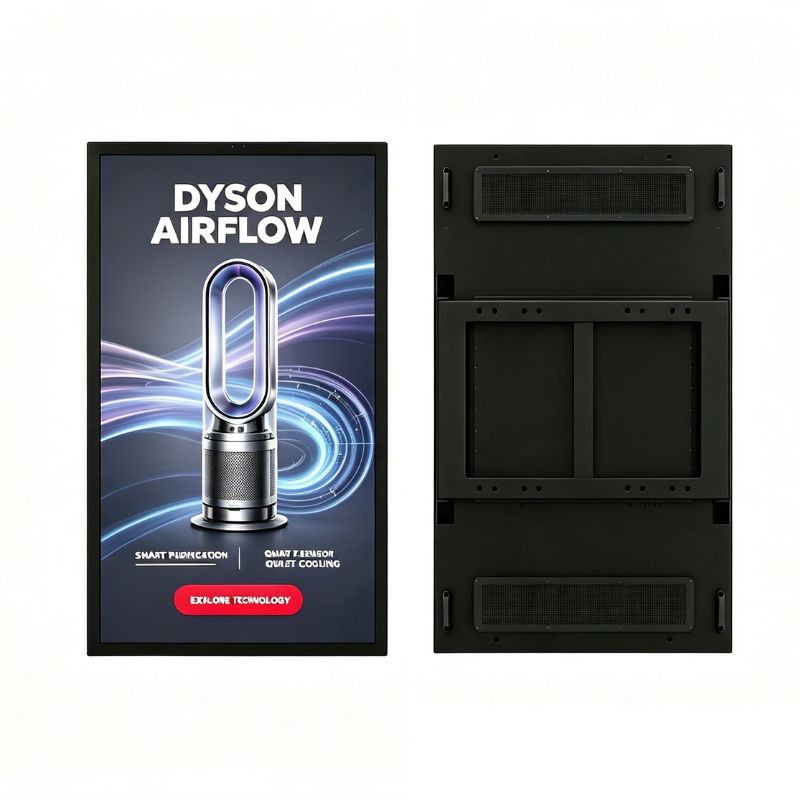

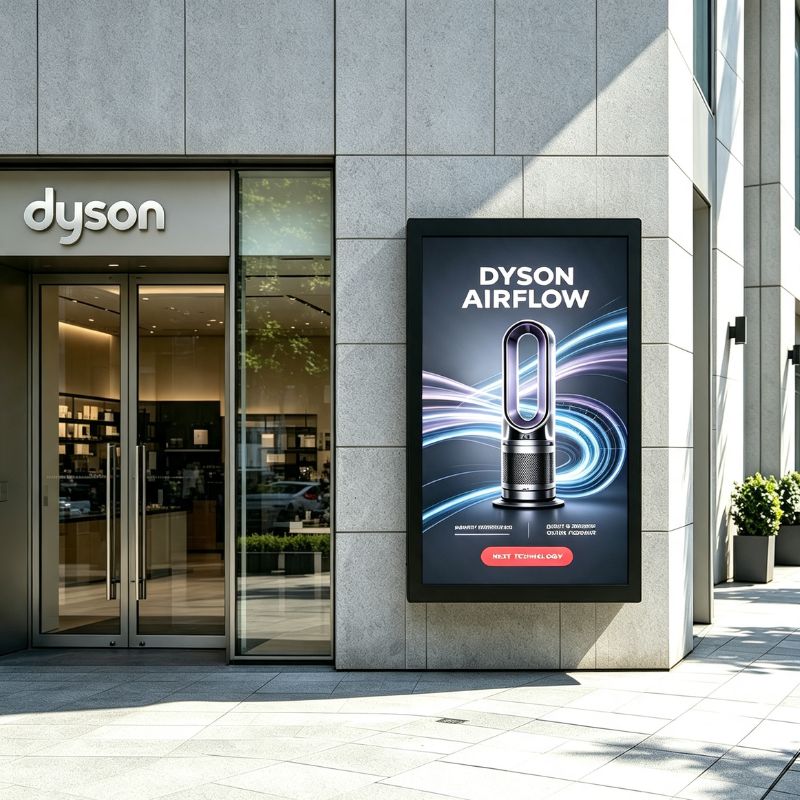

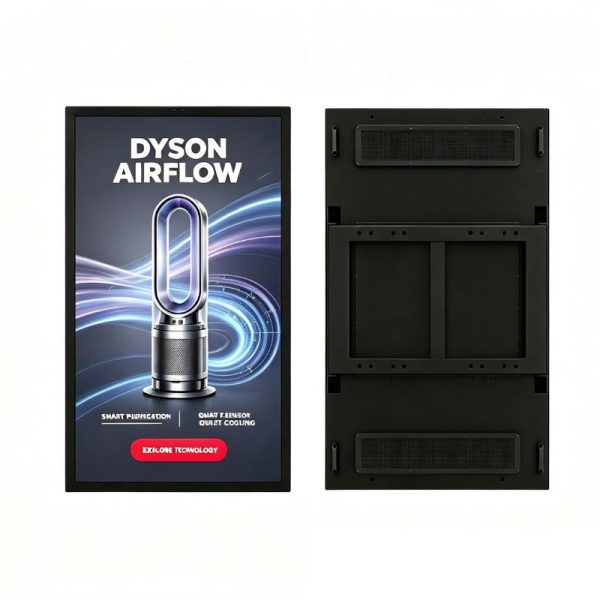

The 86-inch IP66 outdoor digital signage display from Avlink produces vivid, eye-catching visuals and is engineered specifically for outdoor applications. Boasting 3000 nits high brightness for outdoor readability, the panel supports round-the-clock continuous operation. Equipped with Protection Glass integrated anti-reflection coating, it greatly improves viewing clarity. Concealed fans mounted at the bottom of the unit mitigate humidity buildup to maintain stable working status. Rated IK10 against impacts, the display also meets IP66 standards to guard against dust and water ingress.

Bright and Brilliant Messages

Perfect for delivering clear information to audiences, the optically bonded 86-inch outdoor screen by AVLink adopts high-brightness panels to maintain excellent viewability under all weather scenarios. Tailored for commercial use, this 86-inch display adopts heavy-duty hardware to guarantee extended service life and flexible application.

Indoor and Outdoor Deployment

Model AVL-OD860O gains validation for outdoor viewing performance with 3000 nits luminance. Developed for nonstop 24/7 running, it adopts polarization technology to resolve screen blackout issues caused by polarized sunglasses. A built-in automatic brightness sensor adjusts to ambient light, enabling consistently sharp content output.

Enhanced Visibility

Anti-reflective treatment upgrades the Avlink AVL-OD860O’s viewing experience. Its total reflectivity is controlled below 1.5%, delivering legible images and texts even under direct sunlight.

Optimized Protection

With IP66 dustproof and waterproof certification, the Avlink AVL-OD860O achieves outstanding reliability. It can resist physical collisions as well as dust and moisture interference, supporting stable, steady operation amid diverse outdoor environments.

Hidden Fans to Combat Humidity

Four concealed bottom-mounted fans on the Avlink AVL-OD860O effectively tackle humidity-related troubles including condensation. Powerful air circulation facilitates uninterrupted stable operation of the display.

Robust Durability

Outfitted with tempered Magic Protection Glass, the Avlink AVL-OD860O achieves IK10 impact resistance. It offers superior safeguarding against external collision damage, lowering risks of accidental breakdown and bringing users extra reassurance.

Slim Design

Its streamlined all-in-one structure simplifies installation work. Supported by IP66 sealing, anti-reflection treatment, impact protection and effective cooling system, the display maintains reliable long-term performance. Furthermore, an integrated power supply unit consolidates internal components and helps realize a narrow, slim bezel design.

Smooth and Seamless Content Playback

An embedded Android media player powered by the Huidu brand elevates the display’s overall capability and simplifies content administration. It supports fluid switching and continuous playback, optimizing experience for end consumers and retail administrators alike.

Avlink 86 inch Waterproof IP66 Outdoor Digital Signage Display Datasheet

Specifications
TFT Panel
Model No.	AVL-OD860O
Panel size	86” TFT-LCD
Display area(mm)/mode	1896*1066
Maximum resolution	3840*2160
Display color	16.7M
Brightness (nits)	2500cd/㎡~3000cd/㎡
Contrast	1200:1
Visual angle	178°/178°
Response time	6ms
Life(hrs)	>60,000(hrs)
Interface	HDMI input
Appearance
Color/appearance	Black, customized
Case	Aluminum+ 5mm tempered protective glass

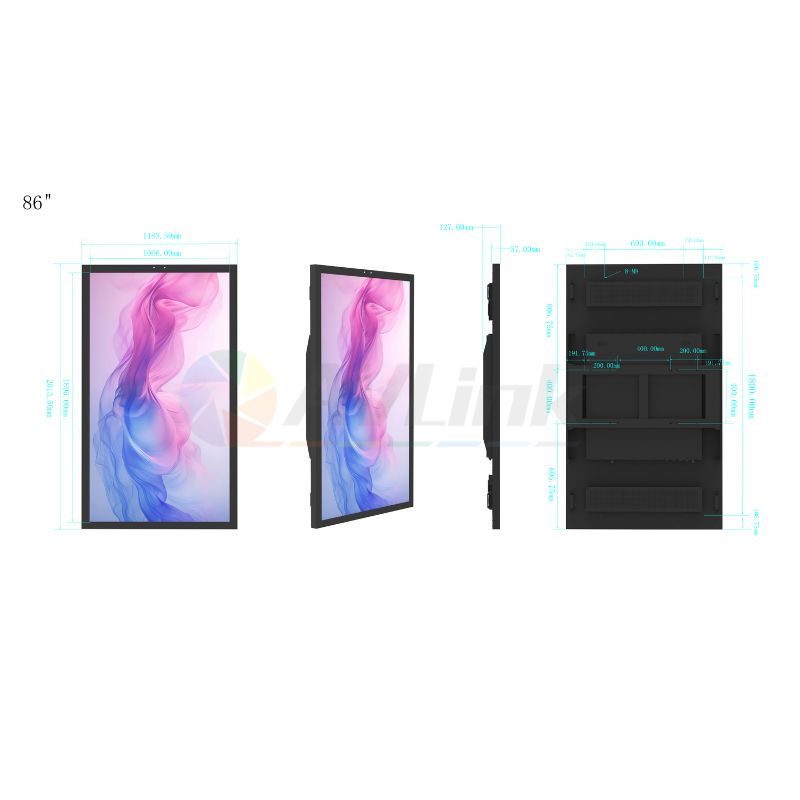

Dimension(LWD)mm	20131183127
Installation	wall-mounted, embedded
Electricity
Power supply	AC100~240V 50 /60 HZ
Maximum power consumption	150W
Power termination	Integrated circuit breaker
Ambient light sensor	Yes
Smart temperature sensor	Yes
Speaker	Yes
Antenna	Yes
Touch	No
Accessibility	Vandal proof security key access
Temperature
Working temperature	-20℃～55℃
Storage temperature	-40℃~60℃
Working humidity	85%
Storage humidity	85%
