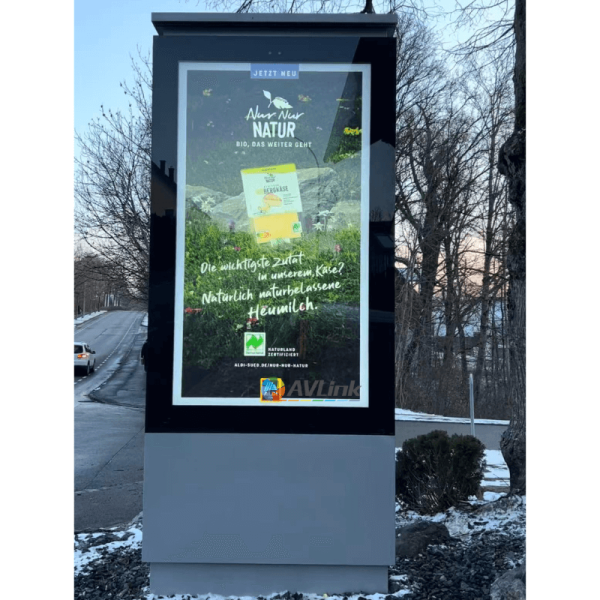

86 inch 4K Outdoor Digital Signage Displays Totem

I. Display Models
1.1 Screen: 86-inch BOE/LG LCD panel.
1.2 Brightness & Protection: 3000 cd/m² brightness with ambient light sensor. Tempered anti-explosion glass included.
1.3 Robust Structure: Reinforced internal structure with ribbing for extreme durability. Constructed from galvanized steel with double-layer outdoor powder coating. Capable of withstanding typhoon-force winds (Grade 12 resistance). Fixed securely via a concrete base with bolts penetrating into the display’s foundation.
1.4 Protection & Cooling: High-quality cooling fan system. Integrated protection against lightning, overload, over-voltage, over-current, and overheating. Designed to be rainproof, dustproof, and resistant to direct sun exposure.
1.5 Core Functions: Industrial-grade embedded Android motherboard. Supports WiFi, RJ45, and optional 4G connectivity. Allows for synchronized control of all units or individual device management. Supports full HD 3840×2160 decoding.

II. Key Features

• Sleek Design: Standard elegant housing with customizable, high-end designs available.

• Timed Backlight Control: Supports 10 programmable time slots for backlight adjustment.

• Intelligent Temperature Management: Maintains a constant, dry internal environment to prevent fogging and condensation.

• Dust & Water Resistance: Sealed design achieves IP55 or IP66 rating, effectively blocking dust and water ingress.

• Weather & Vandal Resistance: Galvanized steel housing with specialized outdoor powder coating offers sun protection, corrosion resistance, and anti-explosion surface treatment. Color remains fade-resistant for up to 10 years outdoors.

III. Product Specifications
3.1 Display Module

1. Industrial-grade, modular design for easy maintenance and comprehensive protection.

2. High resolution, contrast, and brightness for superior image depth and detail.

3. Features auto image retention elimination, UV protection, heat insulation, and ambient light sensing for energy efficiency and prolonged screen life.

4. Black level extension enhances image depth and layering.

5. Industrial LCD panel delivers vibrant video with strong stereoscopic effect.

6. 16.7M colors produce natural, crystal imagery without motion blur.

7. Intelligent temperature control ensures quiet, reliable operation in harsh environments.

8. Long lifespan supports 24/7 operation for over 60,000 hours.

3.2 Electrical & Mechanical Parameters

1. Housing: Full galvanized steel cabinet with imported metallic paint. Anti-magnetic, anti-static, and waterproof materials. IP55 rated for all-weather outdoor use. Includes anti-theft and anti-explosion design.

2. Electrical Protection: Comprehensive safeguards against leakage, overload, over-voltage, lightning, and overheating.

3. Audio: Dual-channel stereo surround system, 2×10W output at 8Ω.

4. Operating Temperature: -30°C to +50°C. Cooled by high-quality combined fans.

5. Protective Glass: 6mm tempered anti-explosion glass.

6. Modular Design: All systems follow modular principles for sustainability and easy maintenance.

7. Mounting: Secured by multiple M18-24 studs embedded in a concrete foundation, fastened with nuts at the unit’s base.

8. Light & Heat Management: Auto ambient light sensing adjusts brightness for clear visibility in direct sunlight and nighttime comfort. Over-temperature protection immediately shuts down the LCD to prevent damage in extreme conditions.

3.3 Content Playback

1. Utilize digital outdoor displays to showcase a vast array of content—images, animations, videos—demonstrating modern community messaging.

2. Engage audiences with lively, dynamic video content. Optional touch functionality enables interactive experiences, fostering effective public communication.

3. Remote, synchronized content playback across multiple nationwide devices via an intelligent network system.
