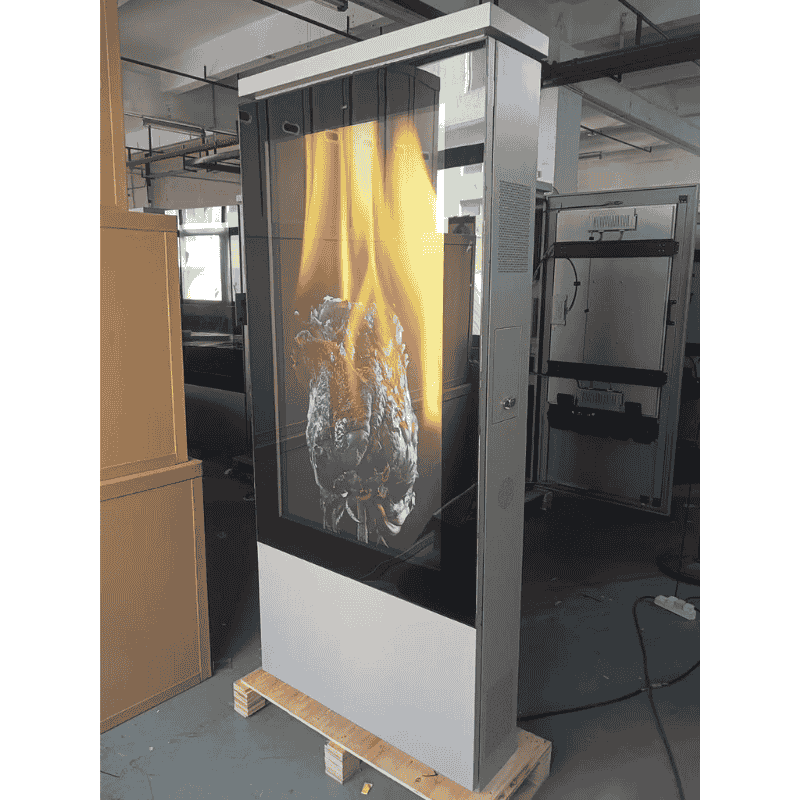

Avlink 65 inch Waterproof LCD Digital Signage Custom Outdoor Display Key Feature
Engineered for the outdoors, this 65-inch digital signage boasts 3000 nits brightness for clear visibility in any light.
Built around an industrial-grade Android platform, it ensures reliable, continuous operation for demanding applications.
An intelligent system automatically adjusts screen brightness and manages internal climate for optimal performance and efficiency.
Centrally manage content and settings seamlessly across your entire network of displays, from one to hundreds.
Designed for longevity, it delivers dependable 24/7 performance with a lifespan exceeding 60,000 hours.
Enhance engagement with an optional, highly responsive 10-point nano-touch overlay for interactive experiences.
| Model | AVL-OD650 |
|---|---|
| Size | 32inch, 43inch, 49inch, 55inch, 5inch, 65inch, 75inch, 86inch, 98inch |
| Resolution | 1920*1080, 3840*2160 |
| Touch | Infrared touch screen |
| Color | Black, RAL color option, White |
| Operating system | Android 9/11/13/14, HDMI input, Windows 10/11 Pro |
| Application | Outdoor |
| Production Time | 20-25 days |
65 inch Waterproof LCD Digital Signage Custom Outdoor Display, high brightness, waterproof full outdoor, AG glass, interactive monitor, leading OEM factory China
| Specifications | |||
| TFT Panel | |||
| Model No. | AVL-OD650 | ||
| Panel size | 65” TFT-LCD | ||
| Display area(mm)/mode | 1429(V)*804(H) | ||
| Maximum resolution | 3840*2160 | ||
| Display color | 16.7M | ||
| Brightness (nits) | 2500nits-3000nits | ||
| Backlight | LED direct-lit backlight, visible even in sunlight; automatic light sensor adjusts screen brightness according to ambient light, saving energy and reducing light pollution. | ||
| Contrast | 1100:1 | ||
| Visual angle | 178°/178° | ||
| Response time | 6ms | ||
| Life(hrs) | >60,000(hrs) | ||
| Interface | HDMI input | ||
| Operating system (optional) | |||
| Operating system | Windows 10 pro, i5/i7/i9 | ||
| RAM | 4G/8G | ||
| SSD | 128G/256G | ||
| Interface | RJ-45, USB, WIFI | ||
| Operating system (optional) | |||
| Operating system | Android 9.0/11.0/13.0 | ||
| RAM | 2G/4G/8G | ||
| SSD | 16G/32G/64G | ||
| Interface | RJ-45, USB, WIFI | ||
| Content management system | Yes, for free | ||
| Appearance | |||
| Color/appearance | Black, Grey, white, customized | ||
| Case | 1.5mm SGCC Galvanized Sheet+ 6mm Tempered glass | ||
| Dimension(L*W*D)mm | 2300*1040*275 | ||
| Weight | 230kg | ||
| Installation | Floor-standing | ||
| Electricity | |||
| Power supply | AC100~240V 50 /60 HZ | ||
| Maximum power consumption | ≦800W | ||
| Power termination | Integrated circuit breaker | ||
| Leakage protection | Residual current circuit breaker, providing leakage protection, overcurrent and overvoltage protection. | ||
| Timed power supply | Microcomputer timer switch, time-based control of machine start and stop. | ||
| Ambient light sensor | Lightning protection level | ||
| Power supply brand | Mean Well industrial-grade power supplies from Taiwan provide stable and reliable power. | ||
| Temperature control | The intelligent fan integrates temperature control, ensuring the display screen remains black and the entire unit operates normally in outdoor environments ranging from -30 to +50 degrees Celsius. | ||
| Fan type | It adopts an imported axial flow fan and is equipped with a fan speed control board. It automatically senses temperature and adjusts the fan speed automatically, saving energy and extending the fan’s service life. | ||
| Ambient light sensor | Yes | ||
| Speaker | Yes | ||
| Antenna | Yes | ||
| Touch | Optional | ||
| Accessibility | Vandal proof security key access | ||
| Temperature | |||
| Working temperature | -30℃～55℃ | ||
| Storage temperature | -40℃~60℃ | ||
| Working humidity | 85% | ||
| Storage humidity | 85% | ||
Shenzhen Avlink Technology is a leading manufacturer specializing in high-quality digital signage and innovative display solutions. With a 4,000-square-meter factory and a dedicated R&D team of 6 experts, we deliver customized digital display screens tailored to your unique needs—providing design drawings within just 1 day.
Comprehensive Product Range – Offering 1,000+ digital advertising screens, including:
Fast Production & Global Reach
3 days lead time for quick delivery
10+ years of export experience, shipping to 70+ countries
Certified with COO, CE-LVDS, CE-EMC, FCC, RoHS, CSA, and KC, SGS, Bureau Veritas
End-to-End Support
On-site installation services for seamless deployment, available in Israel, Italy, France, Netherlands, Germany, Sweden, Switzerland, USA, Canada, Mexico, Oman, Dubai, China Macau, China Hong Kong etc.
24/7 after-sales support to ensure uninterrupted operation
Avlink combines cutting-edge technology, rapid production, and reliable service to power your digital advertising screens with excellence
