| Model | AVL-OD550 |
|---|---|
| Size | 32inch, 43inch, 49inch, 55inch, 65inch, 75inch, 86inch |
| Resolution | 1920*1080, 3840*2160 |
| Color | Black, RAL color option, White |
| Operating system | Android 9/11/13/14, HDMI input, Windows 10/11 Pro |
| Application | Outdoor |
| Production Time | 20-25 days |

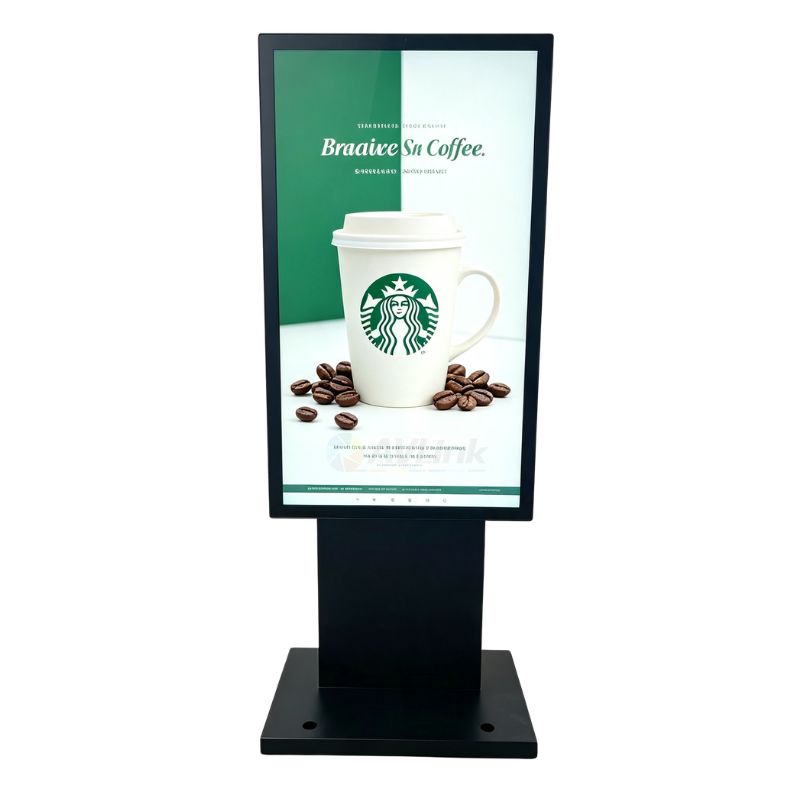

55 inch IP66 Outdoor Digital Signage Touch Screen Display, IK10 impact resistance, and 3000 nits sunlight-readable screen, 24/7 content playback.
Our 55 Inch High Bright IP66 Outdoor Digital Signage Display delivers outstanding outdoor visibility with 3000nits sunlight readable brightness. Equipped with original LG High TNI industrial LCD panel and professional optical bonding technology, this outdoor advertising screen eliminates reflection and guarantees sharp visuals under direct sunshine.
| Specifications | |||
| TFT Panel | |||
| Model No. | AVL-OD550O | ||
| Panel size | 55” TFT-LCD | ||
| Display area(mm)/mode | 1209.6(V)*680.4(H) | ||
| Maximum resolution | 1920*1080 | ||
| Display color | 16.7M | ||
| Brightness (nits) | 2500cd/㎡~3000cd/㎡ | ||
| Contrast | 1200:1 | ||
| Visual angle | 178°/178° | ||
| Response time | 6ms | ||
| Life(hrs) | >60,000(hrs) | ||
| Interface | HDMI input | ||
| System (optional) | |||
| Operating system | Android 11/13/14 | ||
| RAM | 2G | ||
| ROM | 32G | ||
| Interface | HDMI input, USB, LAN | ||
| Appearance | |||
| Color/appearance | Black, customized | ||
| Case | Aluminum+ 6mm tempered protective glass | ||
| Dimension(L*W*D)mm | 1289*760*98 | ||
| Weight | 35kg | ||
| Installation | wall-mounted, embedded | ||
| Electricity | |||
| Power supply | AC100~240V 50 /60 HZ | ||
| Maximum power consumption | 150W | ||
| Power termination | Integrated circuit breaker | ||
| Ambient light sensor | Yes | ||
| Smart temperature sensor | Yes | ||
| Speaker | Yes | ||
| Antenna | Yes | ||
| Touch | No | ||
| Accessibility | Vandal proof security key access | ||
| Temperature | |||
| Working temperature | -20℃～55℃ | ||
| Storage temperature | -40℃~60℃ | ||
| Working humidity | 85% | ||
| Storage humidity | 85% | ||
Shenzhen Avlink Technology is a leading manufacturer specializing in high-quality digital signage and innovative display solutions. With a 4,000-square-meter factory and a dedicated R&D team of 6 experts, we deliver customized digital display screens tailored to your unique needs—providing design drawings within just 1 day.
Comprehensive Product Range – Offering 1,000+ digital advertising screens, including:
Fast Production & Global Reach
3 days lead time for quick delivery
10+ years of export experience, shipping to 70+ countries
Certified with COO, CE-LVDS, CE-EMC, FCC, RoHS, CSA, and KC, SGS, Bureau Veritas
End-to-End Support
On-site installation services for seamless deployment, available in Israel, Italy, France, Netherlands, Germany, Sweden, Switzerland, USA, Canada, Mexico, Oman, Dubai, China Macau, China Hong Kong etc.
24/7 after-sales support to ensure uninterrupted operation
Avlink combines cutting-edge technology, rapid production, and reliable service to power your digital advertising screens with excellence
