Avlink 55 inch High Brightness Outdoor IP65 Waterproof Commercial TV Key Feature
| Model | AVL-OD550 |
|---|---|
| Size | 32inch, 43inch, 49inch, 55inch, 5inch, 65inch, 75inch, 86inch, 98inch |
| Resolution | 1920*1080, 3840*2160 |
| Touch | Infrared touch screen |
| Color | Black, RAL color option, White |
| Operating system | Android 9/11/13/14, HDMI input, Windows 10/11 Pro |
| Application | Outdoor |
| Production Time | 20-25 days |

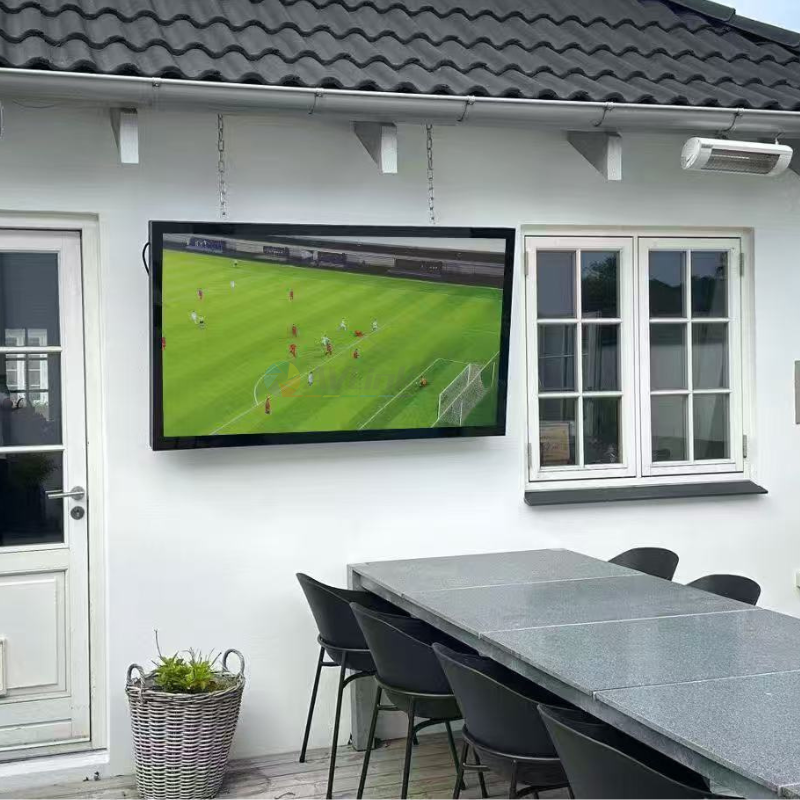

55 inch High Brightness Outdoor IP65 Waterproof Commercial TV, durable full outdoor, perfect for home house party, leading OEM factory China
| Specifications | |||
| TFT Panel | |||
| Model No. | AVL-OD550 | ||
| Panel size | 55” TFT-LCD | ||
| Display area(mm)/mode | 1429(V)*804(H) | ||
| Maximum resolution | 3840*2160 or 1920*1080 | ||
| Display color | 16.7M | ||
| Brightness (nits) | 2500nits-3000nits | ||
| Backlight | LED direct-lit backlight, visible even in sunlight; automatic light sensor adjusts screen brightness according to ambient light, saving energy and reducing light pollution. | ||
| Contrast | 1200:1 | ||
| Visual angle | 178°/178° | ||
| Response time | 6ms | ||
| Life(hrs) | >60,000(hrs) | ||
| Interface | HDMI input | ||
| Operating system (optional) | |||
| Operating system | Windows 10 pro, i5/i7/i9 | ||
| RAM | 4G/8G | ||
| SSD | 128G/256G | ||
| Interface | RJ-45, USB, WIFI | ||
| Operating system (optional) | |||
| Operating system | Android 9.0/11.0/13.0 | ||
| RAM | 2G/4G/8G | ||
| SSD | 16G/32G/64G | ||
| Interface | RJ-45, USB, WIFI | ||
| Content management system | Yes, for free | ||
| Appearance | |||
| Color/appearance | Black, Grey, white, customized | ||
| Case | 1.5mm SGCC Galvanized Sheet+ 6mm Tempered glass | ||
| Dimension(L*W*D)mm | 2356*2100*200 | ||
| Weight | 230kg | ||
| Installation | Floor-standing | ||
| Electricity | |||
| Power supply | AC100~240V 50 /60 HZ | ||
| Maximum power consumption | ≦1100W | ||
| Power termination | Integrated circuit breaker | ||
| Leakage protection | Residual current circuit breaker, providing leakage protection, overcurrent and overvoltage protection. | ||
| Timed power supply | Microcomputer timer switch, time-based control of machine start and stop. | ||
| Ambient light sensor | Lightning protection level | ||
| Power supply brand | Mean Well industrial-grade power supplies from Taiwan provide stable and reliable power. | ||
| Temperature control | The intelligent fan integrates temperature control, ensuring the display screen remains black and the entire unit operates normally in outdoor environments ranging from -30 to +50 degrees Celsius. | ||
| Fan type | It adopts an imported axial flow fan and is equipped with a fan speed control board. It automatically senses temperature and adjusts the fan speed automatically, saving energy and extending the fan’s service life. | ||
| Ambient light sensor | Yes | ||
| Speaker | Yes | ||
| Antenna | Yes | ||
| Touch | Optional | ||
| Accessibility | Vandal proof security key access | ||
| Temperature | |||
| Working temperature | -30℃～55℃ | ||
| Storage temperature | -40℃~60℃ | ||
| Working humidity | 85% | ||
| Storage humidity | 85% | ||
Shenzhen Avlink Technology is a leading manufacturer specializing in high-quality digital signage and innovative display solutions. With a 4,000-square-meter factory and a dedicated R&D team of 6 experts, we deliver customized digital display screens tailored to your unique needs—providing design drawings within just 1 day.
Comprehensive Product Range – Offering 1,000+ digital advertising screens, including:
Fast Production & Global Reach
3 days lead time for quick delivery
10+ years of export experience, shipping to 70+ countries
Certified with COO, CE-LVDS, CE-EMC, FCC, RoHS, CSA, and KC, SGS, Bureau Veritas
End-to-End Support
On-site installation services for seamless deployment, available in Israel, Italy, France, Netherlands, Germany, Sweden, Switzerland, USA, Canada, Mexico, Oman, Dubai, China Macau, China Hong Kong etc.
24/7 after-sales support to ensure uninterrupted operation
Avlink combines cutting-edge technology, rapid production, and reliable service to power your digital advertising screens with excellence
