Avlink 52.3 inch Square LCD Screen Digital Signage Factory Key Feature
| Model | AVL-ID523S |
|---|---|
| Size | 19.2inch, 26inch, 33.3inch, 45.4inch, 52.3inch, 67.6inch |
| Resolution | 1900*1900 |
| Color | Black, RAL color option, White |
| Operating system | Android 9/11/13/14, HDMI input, Windows 10/11 Pro |
| Application | Indoor |
| Production Time | 3-5 days |
53 inch Square LCD Screen Digital Signage Factory, 1900*1900 ultra HD 4K resolution, HDMI input, Android with CMS, Windows 11 Pro, large square monitor solution

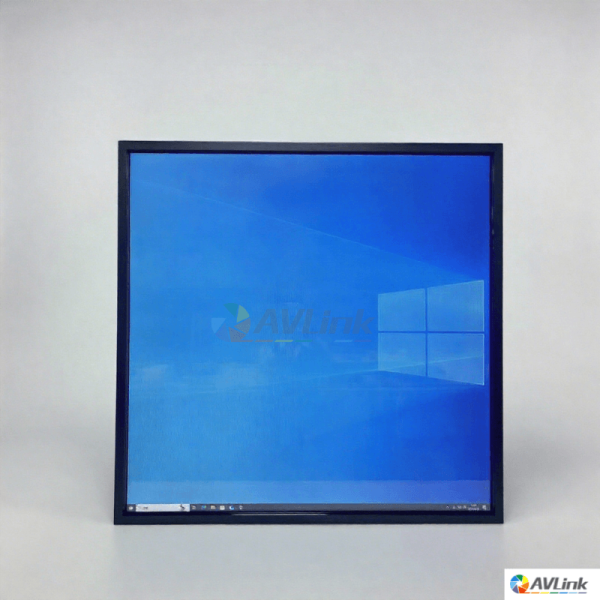

Introducing the AVL-ID523S: The Expansive 52.3-Inch Square Display
Step into the future of large-scale digital installations with the AVL-ID523S—a monumental 52.3-inch square screen engineered to redefine visual impact. Designed for spaces that demand both grandeur and precision, this display transforms any environment into an immersive, awe-inspiring experience.
Key Features:
Unrivaled Visual Presence: With a massive 940×940mm display area and 1900×1900 resolution, this 1:1 ratio screen delivers stunning clarity and symmetry for larger-than-life content.
Seamless Interactivity: Optional advanced touch screen technology enables intuitive, multi-user engagement—ideal for collaborative workspaces, high-traffic lobbies, or interactive exhibitions.
Premium Architectural Build: Crafted with a reinforced metal enclosure and 3mm tempered glass, this display combines sleek aesthetics with industrial durability for permanent installations.
Tailored Performance: Choose from three configurations—HDMI input only, Android OS, or Windows OS—with customizable RAM and storage to meet specialized software needs.
Engineered for Prominence: Despite its expansive size, the slim 46mm profile and wall-mounted design ensure a seamless, flush fit in high-end corporate, retail, or public settings.
Perfect for luxury retail showcases, executive boardrooms, control rooms, galleries, or immersive brand experiences, the AVL-ID523S doesn’t just display content—it dominates the visual landscape with elegance and power.
| Specifications | ||||||||
| TFT Panel | ||||||||
| Model No. | AVL-ID523S | |||||||
| Panel size | 52.3inch | |||||||
| Display area(mm)/mode | 940*940 | |||||||
| Maximum resolution | 1900*1900 | |||||||
| Aspect ratio | 1:1 | |||||||
| Display color | 16.7M | |||||||
| Brightness (nits) | 300cd/㎡ | |||||||
| Contrast | 1000:1 | |||||||
| Visual angle | 178°/178° | |||||||
| Response time | 6ms | |||||||
| Life(hrs) | >60,000(hrs) | |||||||
| Touch | Optional touch screen | |||||||
| Configuration option 1: | ||||||||
| Interface | HDMI input | |||||||
| Configuration option 2: | ||||||||
| System | Android 8.0/9.0/11.0 | |||||||
| RAM | 2G/4G/8G | |||||||
| ROM | 16G/32G/64G | |||||||
| Interface | RJ-45, USB | |||||||
| Configuration option 3: | ||||||||
| System | Windows 10/11 pro, i5/i7, generation 4th/6th/12th | |||||||
| RAM | 4G/8G | |||||||
| SSD | 128G/256G | |||||||
| Interface | RJ-45, USB | |||||||
| Appearance | ||||||||
| Color/appearance | Black or white | |||||||

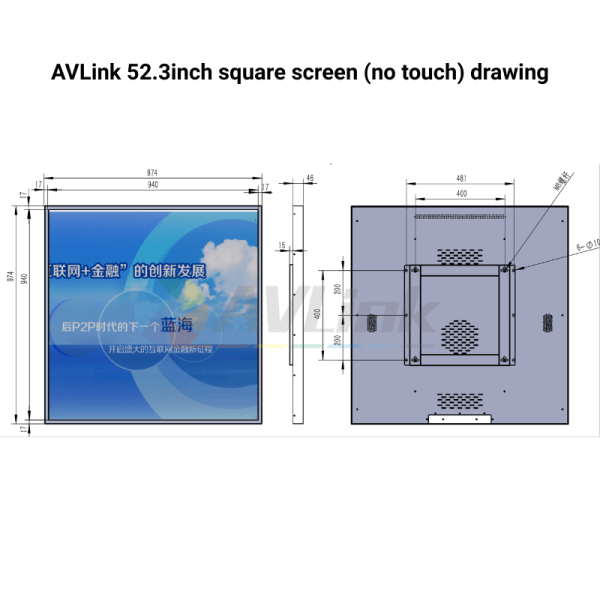

| Monitor dimension(mm) | 974*974*46 | |||||||
| Package dimension(mm) | 1068*1068*160 | |||||||
| Weight(kg) | 35 | |||||||
| Case | Metal enclosure + 3mm tempered glass | |||||||
| Installation | Wall-mounted | |||||||
| Electricity | ||||||||
| Power supply | AC100~240V 50 /60 HZ | |||||||
| Maximum power consumption | <120W | |||||||
| Standby power consumption | <3W | |||||||
| Speaker | 2*5W | |||||||
| Temperature | ||||||||
| Working temperature | 0℃～40℃ | |||||||
| Storage temperature | -10℃~60℃ | |||||||
| Working humidity | 85% | |||||||
| Storage humidity | 85% | |||||||
Shenzhen Avlink Technology is a leading manufacturer specializing in high-quality digital signage and innovative display solutions. With a 4,000-square-meter factory and a dedicated R&D team of 6 experts, we deliver customized digital display screens tailored to your unique needs—providing design drawings within just 1 day.
Comprehensive Product Range – Offering 1,000+ digital advertising screens, including:
Fast Production & Global Reach
3 days lead time for quick delivery
10+ years of export experience, shipping to 70+ countries
Certified with COO, CE-LVDS, CE-EMC, FCC, RoHS, CSA, and KC, SGS, Bureau Veritas
End-to-End Support
On-site installation services for seamless deployment, available in Israel, Italy, France, Netherlands, Germany, Sweden, Switzerland, USA, Canada, Mexico, Oman, Dubai, China Macau, China Hong Kong etc.
24/7 after-sales support to ensure uninterrupted operation
Avlink combines cutting-edge technology, rapid production, and reliable service to power your digital advertising screens with excellence
