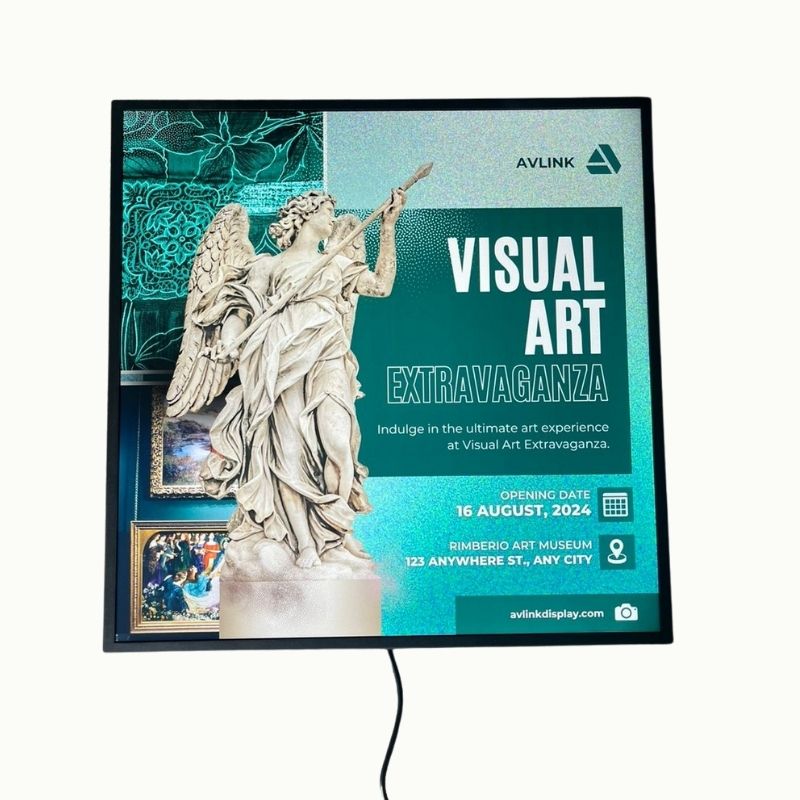

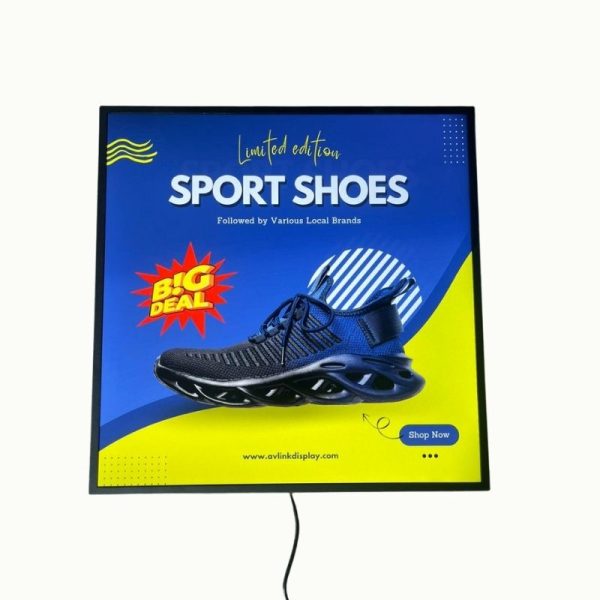

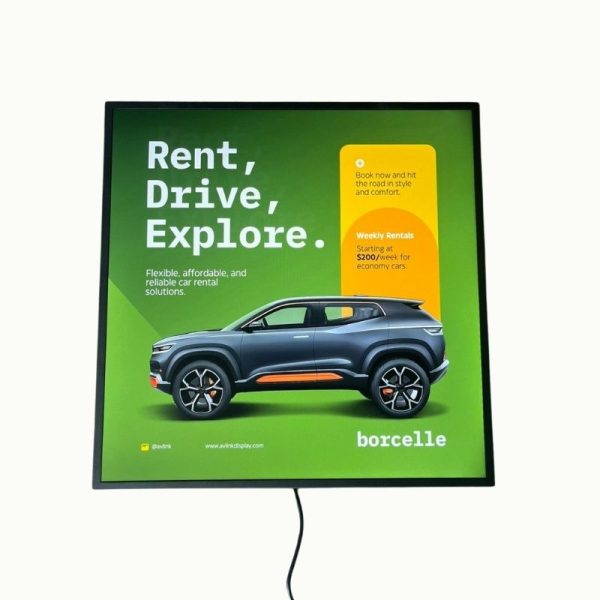

Avlink 22 inch Square LCD Display Matte Art Display Key Feature
| Model | AVL-ID220S |
|---|---|
| Size | 17inch, 22inch, 26.5inch, 33.2inch, 44.9inch |
| Resolution | 1920*1920 |
| Color | Black, White |
| Operating system | Android 9/11/13/14, HDMI input, Windows 10/11 Pro |
| Application | Indoor |
| Production Time | 5-10 days |
22 inch Square LCD Display Matte Art Display, 1920*1920 ultra HD 4K resolution, HDMI input, Android with CMS, Windows 11 Pro, Matte Screen, anti-reflective!
Elevate your digital signage with the AVL-ID220S, a sophisticated 22-inch square TFT-LCD designed for high-impact installations where a unique format and reliable performance are essential.
This display combines a sleek, ultra-thin 30mm profile with a robust metal enclosure, offering a perfect blend of modern aesthetics and durability for wall-mounted or embedded applications.
Key Features:
Crisp Square Format: A unique 1:1 aspect ratio with a sharp 1920×1920 resolution delivers a perfectly symmetrical canvas for creative content.
Vivid & Wide-Viewing: With 500 nits brightness, 16.7 million colors, and 178° wide viewing angles, your content remains clear and vibrant from any perspective.
Flexible System Options: Choose between versatile Android or powerful Windows OS to perfectly match your application’s needs, from simple media playback to complex software integration.
Commercial Reliability: Engineered for 24/7 operation with a >60,000-hour lifespan and low power consumption (<40W), ensuring dependable performance in retail, corporate, or public spaces.
Ideal for avant-garde art installations, interactive kiosks, and high-end retail displays, the AVL-ID220S turns heads and delivers information with stunning clarity.
| Specifications | |||||||||
| TFT Panel | |||||||||
| Model No. | AVL-ID220S | ||||||||
| Panel size | 22 inch | ||||||||
| Display area(mm)/mode | 394.5×394.5 | ||||||||

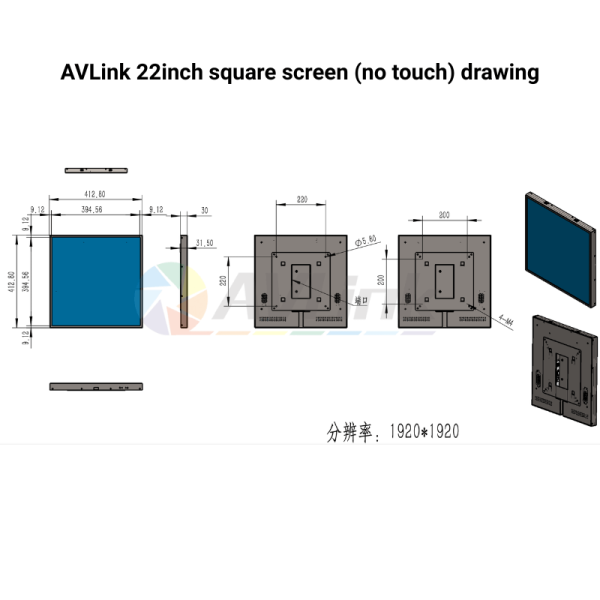

| Monitor dimension(mm) | 412.8*412.8*30 | ||||||||
| Maximum resolution | 1920*1920 | ||||||||
| Aspect ratio | 1:1 | ||||||||
| Display colour | 16.7M | ||||||||
| Brightness (nits) | 500 nits | ||||||||
| Contrast | 1000:1 | ||||||||
| Visual angle | 178°/178° | ||||||||
| Response time | 6ms | ||||||||
| Life (hrs) | >60,000(hrs) | ||||||||
| Interface (optional) | HDMI input | ||||||||
| Touch | No | ||||||||
| Operating system (optional) | |||||||||
| System | Android 9.0/11.0 | ||||||||
| RAM | 2G/4G/8G | ||||||||
| ROM | 32G/64G | ||||||||
| Interface | RJ-45, USB | ||||||||
| Operating system (optional) | |||||||||
| System | Windows 10/11pro, i5/i7, generation 4th/6th/12th | ||||||||
| RAM | 4G/8G | ||||||||
| SSD | 128G/256G | ||||||||
| Interface | RJ-45, USB | ||||||||
| Appearance | |||||||||
| Colour/appearance | Black or white | ||||||||
| Weight(kg) | 5.44 | ||||||||
| Case | Metal enclosure | ||||||||
| Installation | Wall-mounted/embedded | ||||||||
| Electricity | |||||||||
| Power supply | AC100~240V 50 /60 HZ | ||||||||
| Maximum power consumption | <40W | ||||||||
| Standby Power consumption | <3w | ||||||||
| Speaker | 2*5W | ||||||||
| Temperature | |||||||||
| Working temperature | 0℃～40℃ | ||||||||
| Storage temperature | -10℃~60℃ | ||||||||
| Working humidity | 85% | ||||||||
| Storage humidity | 85% | ||||||||
Shenzhen Avlink Technology is a leading manufacturer specializing in high-quality digital signage and innovative display solutions. With a 4,000-square-meter factory and a dedicated R&D team of 6 experts, we deliver customized digital display screens tailored to your unique needs—providing design drawings within just 1 day.
Comprehensive Product Range – Offering 1,000+ digital advertising screens, including:
Fast Production & Global Reach
3 days lead time for quick delivery
10+ years of export experience, shipping to 70+ countries
Certified with COO, CE-LVDS, CE-EMC, FCC, RoHS, CSA, and KC, SGS, Bureau Veritas
End-to-End Support
On-site installation services for seamless deployment, available in Israel, Italy, France, Netherlands, Germany, Sweden, Switzerland, USA, Canada, Mexico, Oman, Dubai, China Macau, China Hong Kong etc.
24/7 after-sales support to ensure uninterrupted operation
Avlink combines cutting-edge technology, rapid production, and reliable service to power your digital advertising screens with excellence
