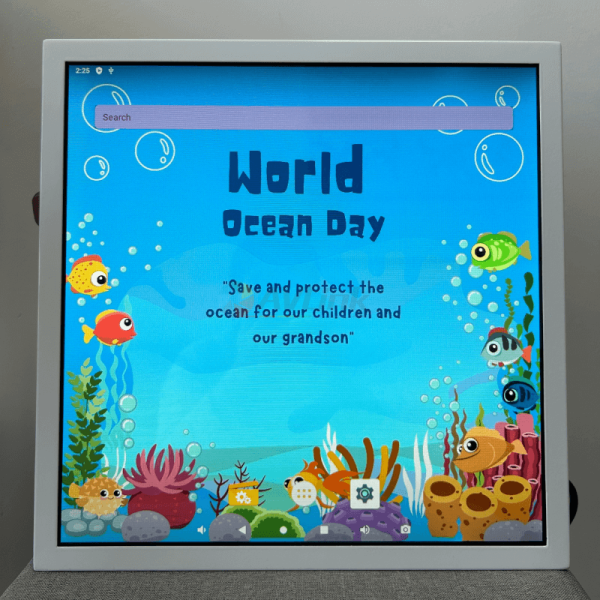

Avlink 19.2 inch Small Square LCD Display Android Display Key Feature
| Model | AVL-ID192S |
|---|---|
| Size | 19.2inch, 26inch, 33.3inch, 45.4inch, 52.3inch, 67.6inch |
| Resolution | 950*950 |
| Touch | Capacitive touch screen |
| Brightness | 350nits |
| Operating system | Android 9/11/13/14, HDMI input, Windows 10/11 Pro |
| Color | Black, RAL color option, White |
| Application | Indoor |
| Production Time | 3-5 days |
20 inch Small Square LCD Display Android Display, small square LCD screen, resolution 950*950, aspect ratio 1:1, digital signage manufacturer China factory!
Designed for spaces where elegance meets functionality, the AVL-ID192S is a compact 19.2-inch square display that delivers crisp, balanced visuals in a sleek, durable form. With its unique 1:1 aspect ratio and 950×950 resolution, it’s perfect for applications where symmetry and clarity matter.
Key Features:
Compact Square Design: Ideal for smaller yet high-impact installations like menus, info panels, or interactive art.
Vibrant Visuals: 300 nits brightness, wide 178° viewing angles, and 16.7M colors ensure clear, consistent viewing.
Premium Build: Metal enclosure with 3mm tempered glass for added durability and a refined look.
Flexible Configuration: Choose from HDMI-only, Android (8.0–11.0), or Windows OS options to match your needs.
Wall-Mount Ready: Slim 45.5mm depth and integrated mounting for seamless installation in modern environments.
Ideal for boutique retail, cafés, corporate lobbies, games or interactive exhibits, the AVL-ID192S brings a touch of sophistication to any setting—combining performance, versatility, and sleek aesthetics in one compact display.
| Specifications | ||||||||
| TFT Panel | ||||||||
| Model No. | AVL-ID192S | |||||||
| Panel size | 19.2 inch | |||||||
| Display area(mm)/mode | 345*345 | |||||||
| Maximum resolution | 950*950 | |||||||
| Aspect ratio | 1:1 | |||||||
| Display colour | 16.7M | |||||||
| Brightness (nits) | 300cd/㎡ | |||||||
| Contrast | 1000:1 | |||||||
| Visual angle | 178°/178° | |||||||
| Response time | 6ms | |||||||
| Life(hrs) | >60,000(hrs) | |||||||
| Touch | Optional | |||||||
| Configuration option 1: | ||||||||
| Interface | HDMI input | |||||||
| Configuration option 2: | ||||||||
| System | Android 8.0/9.0/11.0 | |||||||
| RAM | 2G/4G/8G | |||||||
| ROM | 16G/32G/64G | |||||||
| Interface | RJ-45, USB | |||||||
| Configuration option 3: | ||||||||
| System | Windows 10/11 pro, i5/i7, generation 4th/6th/12th | |||||||
| RAM | 4G/8G | |||||||
| SSD | 128G/256G | |||||||
| Interface | RJ-45, USB | |||||||
| Appearance | ||||||||
| Colour/appearance | Black or white | |||||||

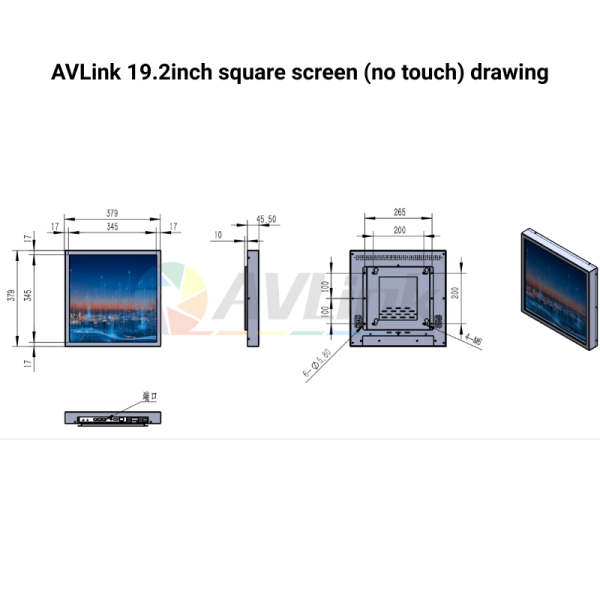

| Monitor dimension (mm) | 379*379*45.5 | |||||||
| Package dimension (mm) | 489*489*160 | |||||||
| Weight (kg) | 6.5 | |||||||
| Case | Metal enclosure + 3mm tempered glass | |||||||
| Installation | Wall-mounted | |||||||
| Electricity | ||||||||
| Power supply | AC100~240V 50 /60 HZ | |||||||
| Maximum power consumption | <40W | |||||||
| Standby power consumption | <3W | |||||||
| Speaker | 2*5W | |||||||
| Temperature | ||||||||
| Working temperature | 0℃～40℃ | |||||||
| Storage temperature | -10℃~60℃ | |||||||
| Working humidity | 85% | |||||||
| Storage humidity | 85% | |||||||
Shenzhen Avlink Technology is a leading manufacturer specializing in high-quality digital signage and innovative display solutions. With a 4,000-square-meter factory and a dedicated R&D team of 6 experts, we deliver customized digital display screens tailored to your unique needs—providing design drawings within just 1 day.
Comprehensive Product Range – Offering 1,000+ digital advertising screens, including:
Fast Production & Global Reach
3 days lead time for quick delivery
10+ years of export experience, shipping to 70+ countries
Certified with COO, CE-LVDS, CE-EMC, FCC, RoHS, CSA, and KC, SGS, Bureau Veritas
End-to-End Support
On-site installation services for seamless deployment, available in Israel, Italy, France, Netherlands, Germany, Sweden, Switzerland, USA, Canada, Mexico, Oman, Dubai, China Macau, China Hong Kong etc.
24/7 after-sales support to ensure uninterrupted operation
Avlink combines cutting-edge technology, rapid production, and reliable service to power your digital advertising screens with excellence
