| Model | AVL-ID260S |
|---|---|
| Size | 19.2inch, 26inch, 33.3inch, 45.4inch, 52.3inch, 67.6inch |
| Resolution | 950*950 |
| Touch | Capacitive touch screen |
| Color | Black, RAL color option, White |
| Operating system | Android 9/11/13/14, HDMI input, Windows 10/11 Pro |
| Application | Indoor |
| Production Time | 3-5 days |
26 inch Square LCD Display Android Digital Signage, 950*950 resolution, PCAP points touch screen, HDMI input, Android with CMS, Windows 11 Pro, embedded solution

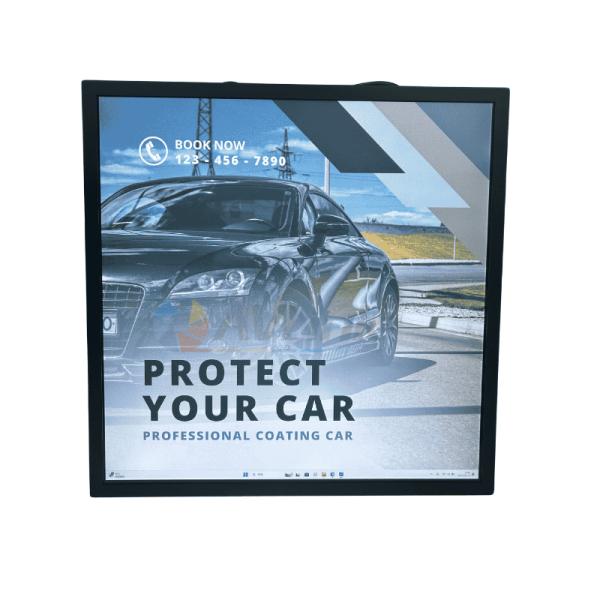

Introducing the AVL-ID260S: The Interactive 26-Inch Square Touch Display
Designed for engagement and elegance, the AVL-ID260S redefines interactive experiences with its expansive 26-inch square touch screen. Combining a generous viewing area with intuitive PCAP touch technology, this display is built to captivate and connect in dynamic environments.
Key Features:
Immersive Square Touch Interface: A large 1:1 canvas with 950×950 resolution offers a natural, engaging interaction space for users.
Crystal-Clear Visuals: 300 nits brightness, 178° ultra-wide viewing angles, and 16.7M colors ensure vibrant visibility from any position.
Robust & Refined Build: Protected by 3mm tempered glass and housed in a sleek metal enclosure, it balances durability with modern aesthetics.
Configurable Performance: Choose from HDMI-only, Android, or Windows OS options—tailor RAM and storage to your needs.
Seamless Integration: With wall-mounted versatility and low power consumption (<40W), it fits effortlessly into high-traffic commercial settings.
Perfect for interactive directories, collaborative workspaces, educational hubs, or retail experiences, the AVL-ID260S turns interaction into artistry—blending form, function, and future-ready technology.
| Specifications | ||||||||
| TFT Panel | ||||||||
| Model No. | AVL-ID260S | |||||||
| Panel size | 26inch | |||||||
| Display area(mm)/mode | 467*467 | |||||||
| Maximum resolution | 950*950 | |||||||
| Aspect ratio | 1:1 | |||||||
| Display color | 16.7M | |||||||
| Brightness (nits) | 300cd/㎡ | |||||||
| Contrast | 1000:1 | |||||||
| Visual angle | 178°/178° | |||||||
| Response time | 6ms | |||||||
| Life(hrs) | >60,000(hrs) | |||||||
| Touch | PCAP touch screen | |||||||
| Configuration option 1: | ||||||||
| Interface | HDMI input | |||||||
| Configuration option 2: | ||||||||
| System | Android 8.0/9.0/11.0 | |||||||
| RAM | 2G/4G/8G | |||||||
| ROM | 16G/32G/64G | |||||||
| Interface | RJ-45, USB | |||||||
| Configuration option 3: | ||||||||
| System | Windows 10/11 pro, i5/i7, generation 4th/6th/12th | |||||||
| RAM | 4G/8G | |||||||
| SSD | 128G/256G | |||||||
| Interface | RJ-45, USB | |||||||
| Appearance | ||||||||
| Colour/appearance | Black or white | |||||||

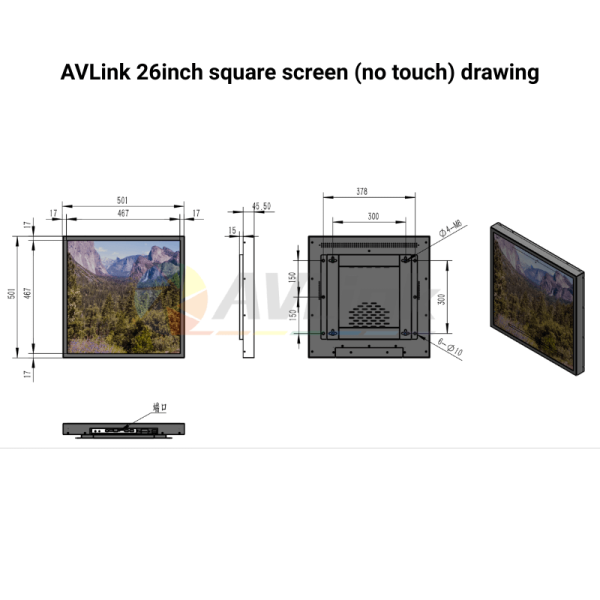

| Monitor dimension(mm) | 501*501*45.5 | |||||||
| Package dimension(mm) | 601*601*160 | |||||||
| Weight(kg) | 10 | |||||||
| Case | Metal enclosure + 3mm tempered glass | |||||||
| Installation | Wall-mounted | |||||||
| Electricity | ||||||||
| Power supply | AC100~240V 50 /60 HZ | |||||||
| Maximum power consumption | <40W | |||||||
| Standby power consumption | <3W | |||||||
| Speaker | 2*5W | |||||||
| Temperature | ||||||||
| Working temperature | 0℃～40℃ | |||||||
| Storage temperature | -10℃~60℃ | |||||||
| Working humidity | 85% | |||||||
| Storage humidity | 85% | |||||||
