Avlink 77.5 inch 4K Ultra-Wide Stretched Bar LCD Monitor Key Feature

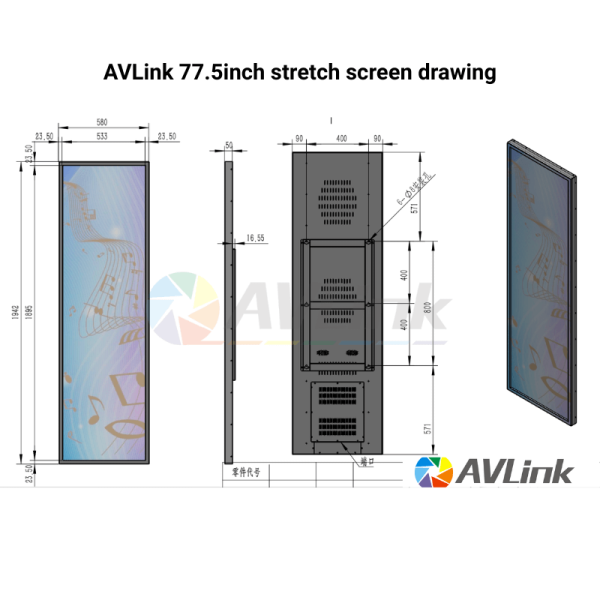

77.5 inch stretch screen active area 1895*533mm, monitor dimension 1942*580*60mm
77.5 inch stretch display 4K resolution 3840*1080
77.5 inch stretch LCD monitor could be landscape and portrait version
| Model | AVL-ID775T |
|---|---|
| Size | 19.5inch, 24inch, 28.6inch, 34inch, 43.9inch, 58.4inch, 69.3inch, 70inch, 86inch, 88inch |
| Resolution | 3840*1080 |
| Color | Black, RAL color option, White |
| Touch | Infrared touch screen |
| Operating system | Android 9/11/13/14, HDMI input, Windows 10/11 Pro |
| Application | Indoor |
| Production Time | 10-15 days |
78 inch Ultra-Wide Stretched Bar LCD Monitor, 3840*1080 ultra HD 4K resolution, HDMI input, Android with CMS, Windows 11 Pro, big size stretch screen factory
Introducing the AVL-ID775S: The 77.5-Inch Ultra-Premium Stretch Display
Redefine large-scale visual impact with the AVL-ID775S – an engineering marvel designed to dominate panoramic digital canvases. As our flagship stretch display, this 77.5-inch TFT-LCD merges monumental scale with premium performance, offering an unparalleled widescreen experience for spaces where grandeur and precision are non-negotiable.
Key Features:
Unrivaled Panoramic Scale: Command attention with a massive 1895x533mm display area and crystal-clear 3840×1080 resolution, delivering immersive, cinema-grade visuals for advertising, control rooms, or architectural showcases.
Brilliant High-Brightness Output: Choose between 500 to 700 nits peak brightness, ensuring stunning clarity and vibrancy even in sunlit atriums, high-traffic lobbies, or brightly lit retail environments.
Premium Architectural Integration: With a sleek 60mm profile and versatile mounting (wall, embedded, or ceiling), this display blends seamlessly into luxury interiors, corporate spaces, and public venues without compromising aesthetics.
Windows 10 Embedded Power: Optional integrated computing with Windows 10, 4GB RAM, and 128GB SSD enables standalone operation – perfect for complex data visualization, live feeds, or interactive applications without external hardware.
Commercial-Grade Endurance: Housed in a robust SPCC metal case and built for 24/7 operation, it delivers reliable performance with optimized power efficiency (<180W operational, <5W standby).
From flagship retail media walls and corporate command centers to grand exhibition spaces and transportation hubs, the AVL-ID775S transforms vast surfaces into captivating visual experiences.
| Specifications | ||
| TFT Panel | ||
| Model No. | AVL-ID775S | |
| Panel size | 77.5inch TFT-LCD | |
| Display area(mm)/mode(H*V) | 1895×533 | |
| Maximum resolution | 3840*1080 | |
| Display color | 16.7M | |
| Brightness (nits) | 500 nits to 700 nits | |
| Contrast | 1000:1 | |
| Visual angle | 178°/178° | |
| Response time | 5ms | |
| Life(hrs) | >60,000(hrs) | |
| Interface | HDMI input | |
| Operating system (optional) | ||
| Operating system | Windows 10 | |
| RAM | 4G | |
| SSD | 128G | |
| Interface | HDMI, USB, LAN | |
| Appearance | ||
| Color/appearance | Black, customized | |
| Case | Metal case SPCC | |
| Dimension(H*W*D)mm | 1942*580*60 | |
| Net Weight | 55kg | |
| Installation | Wall-mounted or embedded or ceiling mounted | |
| Electricity | ||
| Power supply | AC 90-240V | |
| Power consumption | <180w | |
| Standby power consumption | <5w | |
| Speaker | 5W*2 | |
| Touch | No | |
| Temperature | ||
| Working temperature | 0℃～45℃ | |
| Storage temperature | -10℃~60℃ | |
| Working humidity | 10%~85% | |
| Storage humidity | 5%~95% | |
| Detailed functions | ||
| Video Format | MPEG1/MPEG2/MPEG4/DIVX/ASP/WMV/AVI | |
| Audio Format | WAVE/MP3/WMA/AAC | |
| Image Format | JPEG/BMP/TIFF/PNG/GIF | |
| Image Resolution | 480P/720P/1080P/3840P | |
