Avlink 86inch Ultra-Wide Stretched Bar LCD Monitors Key Feature

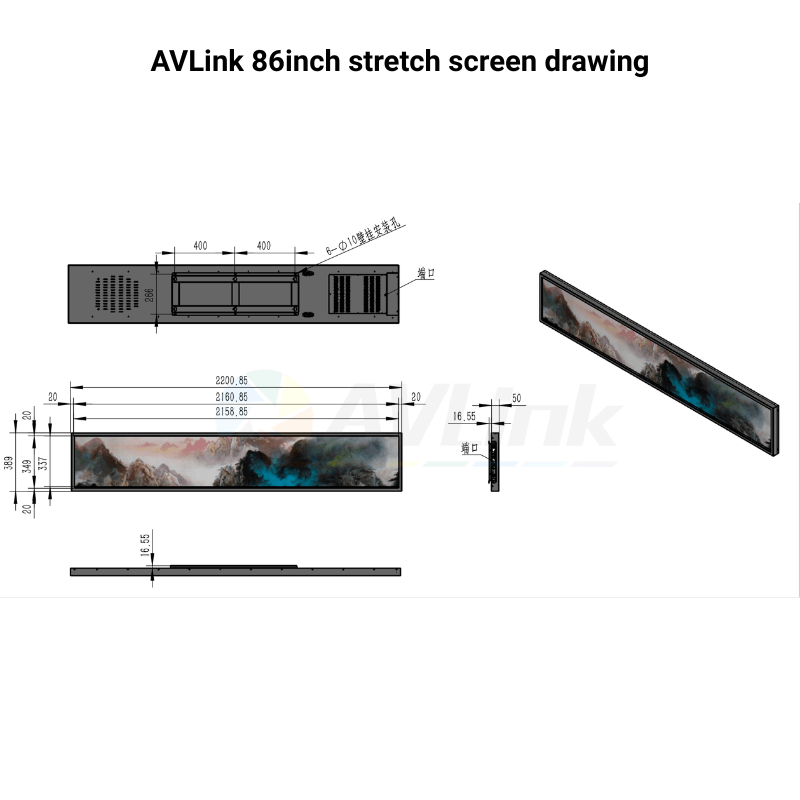

86 inch stretch screen active area 2158*337mm, monitor dimension 2200*379*50mm
86 inch stretch display resolution 3840*600
86 inch stretch LCD monitor could be landscape and portrait version
| Model | AVL-ID860S |
|---|---|
| Size | 19.5inch, 24inch, 28.6inch, 34inch, 43.9inch, 58.4inch, 69.3inch, 70inch, 75inch, 86inch, 88inch |
| Resolution | 3840*600 |
| Color | Black, RAL color option, White |
| Operating system | Android 9/11/13/14, HDMI input, Windows 10/11 Pro |
| Application | Indoor |
| Production Time | 20-25 days |
86 inch Ultra-Wide Stretched Bar LCD Monitors, 3840*600 ultra HD 4K resolution, HDMI input, Android with CMS, Windows 11 Pro, slim stretch display manufacturer China!

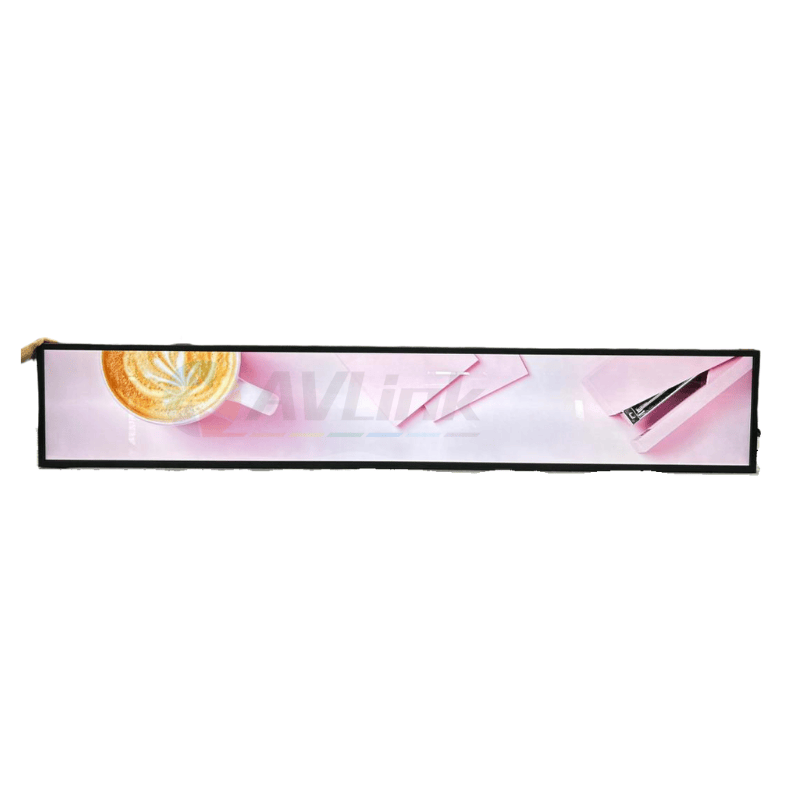

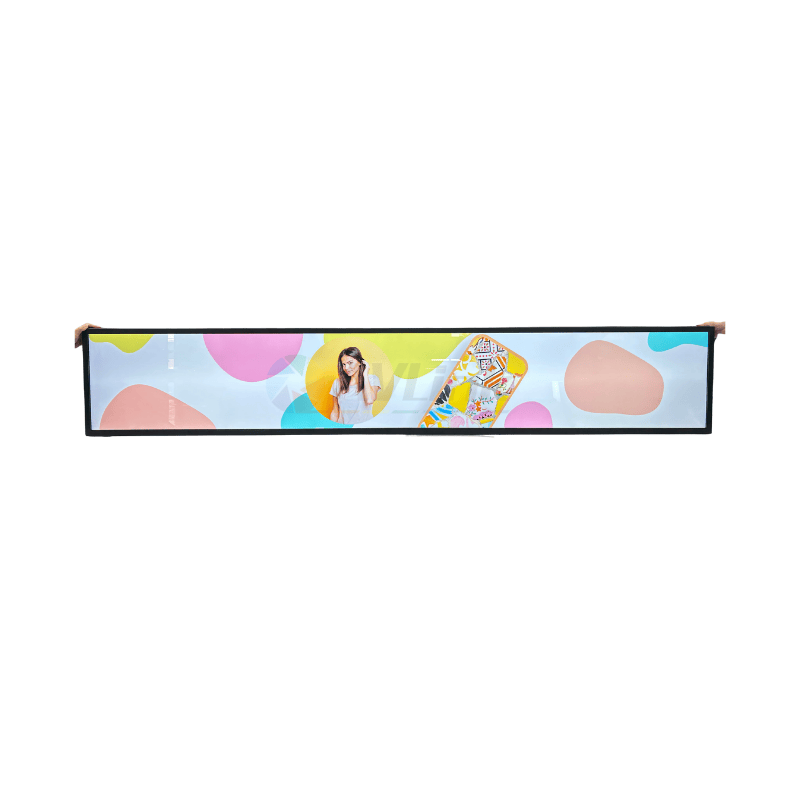

Introducing the AVL-ID860S: The 86-Inch Ultra-Wide Stretch Display
Experience the future of digital canvases with the AVL-ID860S – an engineering masterpiece that redefines scale and sophistication. As the largest display in our stretch series, this 86-inch TFT-LCD commands attention with its extraordinary 2158x337mm viewing area, delivering a panoramic visual experience that transforms any space into a dynamic storytelling platform.
Key Features:
Unmatched Panoramic Scale: With an expansive 86-inch ultra-wide format and 3840×600 resolution, this display creates a breathtaking canvas for immersive branding, information dashboards, and large-scale artistic installations.
Brilliant Visual Performance: 500 nits brightness and exceptional 4000:1 contrast ratio ensure vibrant, crystal-clear visuals even in brightly lit environments, while 178° wide viewing angles maintain consistency from any perspective.
Seamless Integration: Designed for wall-mounted or embedded installation, its sleek 50mm profile and customizable finish blend effortlessly into corporate lobbies, control rooms, retail spaces, and public venues.
Smart Android Operation: Optional integrated Android 9.0 system with 2G/4G RAM and 16G/32G storage enables standalone content management, remote updates, and app-based functionality without external hardware.
Robust and Reliable: Housed in a durable SPCC metal case and built for 24/7 operation, this display offers commercial-grade endurance with energy-efficient performance (<180W operational, <5W standby).
Perfect for grand-scale applications in transportation hubs, executive boardrooms, flagship retail stores, and cultural institutions, the AVL-ID860S doesn’t just display content – it creates an atmosphere of innovation and impact.
Where Vision Meets Monumental Presence: This isn’t just a screen – it’s a statement of technological ambition, designed for those who refuse to think inside the box.
| Specifications | ||
| TFT Panel | ||
| Model No. | AVL-ID860S | |
| Panel size | 86 inch TFT-LCD | |
| Display area(mm)/mode(H*V) | 2158*337 | |
| Maximum resolution | 3840*600 | |
| Display color | 16.7M | |
| Brightness (nits) | 500 nits | |
| Contrast | 4000:1 | |
| Visual angle | 178°/178° | |
| Response time | 5ms | |
| Life(hrs) | >60,000(hrs) | |
| Interface (optional) | HDMI input | |
| Operating system (optional) | ||
| Operating system | Android 9.0 | |
| RAM | 2G/4G | |
| ROM | 16G/32G | |
| Interface | USB, LAN port | |
| Appearance | ||
| Colour/appearance | Black, customized | |
| Case | Metal case SPCC | |
| Dimension(H*W*D)mm | 2200*379*50 | |
| Net Weight | 67kg | |
| Installation | Wall-mounted or embedded | |
| Electricity | ||
| Power supply | AC 100-240V | |
| Power consumption | <180w | |
| Standby power consumption | <5w | |
| Speaker | Yes | |
| Touch | NO | |
| Temperature | ||
| Working temperature | 0℃～40℃ | |
| Storage temperature | -20℃~60℃ | |
| Working humidity | 10%~85% | |
| Storage humidity | 5%~95% | |
| Detailed functions | ||
| Video Format | MPEG1/MPEG2/MPEG4/DIVX/ASP/WMV/AVI | |
| Audio Format | WAVE/MP3/WMA/AAC | |
| Image Format | JPEG/BMP/TIFF/PNG/GIF | |
| Image Resolution | 480P/720P/1080P/3840P | |
