Avlink 75 inch Three-Sided Ultra-Wide Stretched Bar LCD Monitor Key Feature

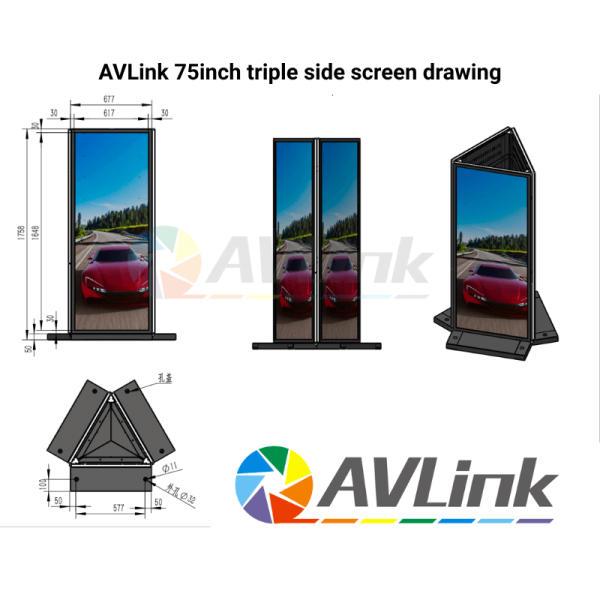

75 inch three sided screen active area 1648*617mm, monitor dimension 1758*677mm
75 inch three sided display resolution 3840*1350
75 inch three sided digital signage suitable for airport, centrepiece, exhibition etc
| Model | AVL-ID750T |
|---|---|
| Size | 75inch |
| Color | Black, RAL color option, White |
| Touch | Capacitive touch screen, Infrared touch screen |
| Resolution | 3840*1350 |
| Operating system | Android 9/11/13/14, HDMI input, Windows 10/11 Pro |
| Application | Indoor |
| Production Time | 10-15 days |
75 inch Three-Sided Ultra-Wide Stretched Bar LCD Monitor, 3840*1350 ultra HD 4K resolution, HDMI input, Android, Windows 11 Pro, triple digital signage for airport!
Introducing the AVL-ID750T: The World’s First Triple-Side Stretch Screen – A 75-Inch Engineering Revolution
Step into the future of immersive visual technology with the AVL-ID750T – the world’s only triple-side stretch screen. This groundbreaking 75-inch TFT-LCD display redefines spatial engagement with its unique three-sided design, offering unparalleled versatility and impact for environments where multi-angle visibility and aesthetic innovation are paramount.
Key Features:
World-Exclusive Triple-Side Design: The first and only display engineered with three viewing sides, creating a captivating 360°-like experience ideal for high-traffic lobbies, exhibitions, retail hubs, and public installations.
Ultra-Wide High-Definition Canvas: Boasting a expansive 1648×617mm display area with 3840×1350 resolution and 500 nits brightness, it delivers crisp, vibrant visuals across all three sides without compromise.
Architectural-Grade Build: Crafted with a robust SPCC metal chassis and sleek customizable finish, this floor-standing centrepiece commands attention while built to withstand demanding commercial use.
Seamless Media Integration: Supports extensive video (MPEG/AVI/WMV), audio (MP3/WMA/AAC), and image (JPEG/PNG/BMP) formats, enabling dynamic content delivery perfect for advertising, information, or artistic displays.
Unmatched Energy Efficiency: Despite its grand scale, the display consumes <500W during operation and just <5W in standby, aligning power with performance for sustainable 24/7 operation.
From luxury showrooms and corporate atriums to transit hubs and event spaces, the AVL-ID750T transforms passive viewing into an interactive, multi-dimensional journey.
Where Vision Meets Versatility: This isn’t just a screen – it’s a revolutionary canvas for the world’s most ambitious digital experiences.
| Specifications | ||
| TFT Panel | ||
| Model No. | AVL-ID750T | |
| Panel size | 75 inch TFT-LCD | |
| Display area(mm)/mode(H*V) | 1648*617 | |
| Maximum resolution | 3840*1350 | |
| Display colour | 16.7M | |
| Brightness (nits) | 500 nits | |
| Contrast | 1000:1 | |
| Visual angle | 178°/178° | |
| Response time | 5ms | |
| Life(hrs) | >60,000(hrs) | |
| Interface | HDMI input | |
| Appearance | ||
| Colour/appearance | Black, customized | |
| Case | Metal case SPCC | |
| Dimension(H*W*D)mm | 1758*677 | |
| Net Weight | 180kg | |
| Installation | Floor-standing | |
| Electricity | ||
| Power supply | AC 90-240V | |
| Power consumption | <500w | |
| Standby power consumption | <5w | |
| Speaker | 5W*2 | |
| Touch | optional | |
| Temperature | ||
| Working temperature | 0℃～45℃ | |
| Storage temperature | -10℃~60℃ | |
| Working humidity | 10%~85% | |
| Storage humidity | 5%~95% | |
| Detailed functions | ||
| Video Format | MPEG1/MPEG2/MPEG4/DIVX/ASP/WMV/AVI | |
| Audio Format | WAVE/MP3/WMA/AAC | |
| Image Format | JPEG/BMP/TIFF/PNG/GIF | |
| Image Resolution | 480P/720P/1080P/3840P | |
