Avlink 59 inch Ultra-Wide Stretched Bar LCD Display Key Feature

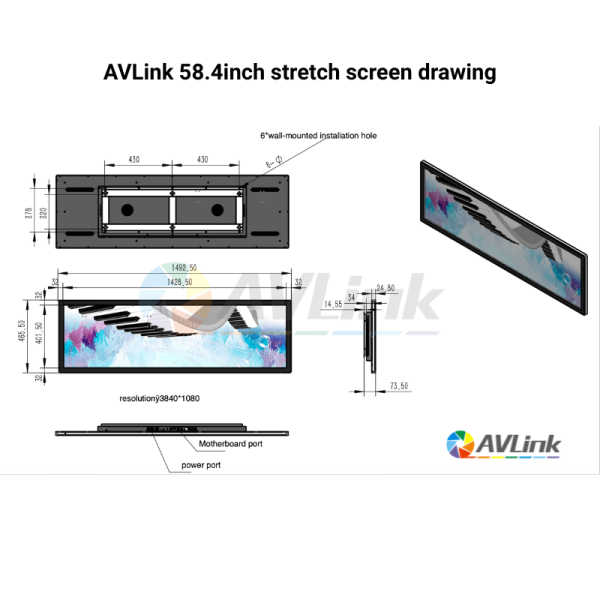

58.4 inch stretch screen active area 1428.5*401.5mm, monitor dimension 1492.5*465.5mm
58.4 inch stretch display resolution 1920*540 or 3840*1080
58.4 inch stretch LCD monitor could be landscape and portrait version
58.4 inch stretch LCD monitor PCAP and IR touch available
| Size | 19.5inch, 24inch, 28.6inch, 34inch, 43.9inch, 58.4inch, 69.3inch, 70inch, 86inch, 88inch |
|---|---|
| Color | Black, RAL color option, White |
| Touch | Capacitive touch screen, Infrared touch screen |
| Operating system | Android 9/11/13/14, HDMI input, Windows 10/11 Pro |
| Application | Indoor |
| Production Time | 3-5 days |
59 inch Ultra-Wide Stretched Bar LCD Display, 3840*1080 ultra HD 4K resolution, HDMI input, Android with CMS, Windows 11 Pro, customized stretch monitor factory
Introducing the AVL-ID584S: The 58.4-Inch Ultra-Wide Stretch Display
Elevate your visual landscape with the AVL-ID584S – a masterpiece of panoramic engineering designed to transform any space with its breathtaking scale and sleek, modern design. This 58.4-inch ultra-wide stretch display redefines digital engagement, offering an immersive canvas that commands attention while blending seamlessly into sophisticated environments.
Key Features:
Immersive Ultra-Wide Format: With a vast 1428.5×401.5mm display area and dual-resolution support (1920×540 or stunning 3840×1080), this screen delivers captivating widescreen visuals perfect for dynamic advertising, interactive experiences, or multi-content layouts.
Sleek, Architectural Design: Crafted with a premium aluminium and metal case, its remarkably slim 69mm profile and wall-mounted versatility make it a seamless addition to modern interiors – from corporate lobbies and retail spaces to galleries and control rooms.
Vivid, High-Performance Visuals: 350 nits brightness, 178° ultra-wide viewing angles, and 16.7 million colours ensure brilliant, consistent imagery from any perspective, even in well-lit environments.
Optional Interactive Touch: Transform the display into an engaging interactive platform with optional 20-point touch technology, ideal for collaborative workspaces, educational settings, or customer-facing applications.
Robust and Reliable: Built for 24/7 operation with a 60,000-hour lifespan and energy-efficient performance (110W operational, <5W standby), this display combines durability with elegance.
From luxury retail video walls and executive boardrooms to immersive art installations and high-traffic public spaces, the AVL-ID584S turns extended walls into unforgettable visual experiences.
Where Scale Meets Sophistication: This isn’t just a display – it’s a statement of innovation and elegance, designed for those who demand both impact and refinement.
| Specifications | ||
| TFT Panel | ||
| Model No. | AVL-ID584S | |
| Panel size | 58.4 inch TFT-LCD | |
| Display area(mm)/mode(H*V) | 1428.5*401.5 | |
| Maximum resolution | 1920*540 or 3840*1080 | |
| Display colour | 16.7M | |
| Brightness (nits) | 350 nits | |
| Contrast | 1000:1 | |
| Visual angle | 178°/178° | |
| Response time | 5ms | |
| Life(hrs) | >60,000(hrs) | |
| Interface | HDMI input | |
| Appearance | ||
| Colour/appearance | Black, customized | |
| Case | Aluminium + Metal case | |
| Dimension(H*W*D)mm | 1475*69*448 | |
| Net Weight | 28kg | |
| Installation | Wall-mounted | |
| Electricity | ||
| Power supply | AC 100-240V | |
| Power consumption | 110w | |
| Standby power consumption | <5w | |
| Speaker | Yes | |
| Touch | 20 points touch screen optional | |
| Temperature | ||
| Working temperature | 0℃～45℃ | |
| Storage temperature | -10℃~60℃ | |
| Working humidity | 10%~85% | |
| Storage humidity | 5%~95% | |
| Detailed functions | ||
| Video Format | MPEG1/MPEG2/MPEG4/DIVX/ASP/WMV/AVI | |
| Audio Format | WAVE/MP3/WMA/AAC | |
| Image Format | JPEG/BMP/TIFF/PNG/GIF | |
| Image Resolution | 480P/720P/1080P/3840P | |
