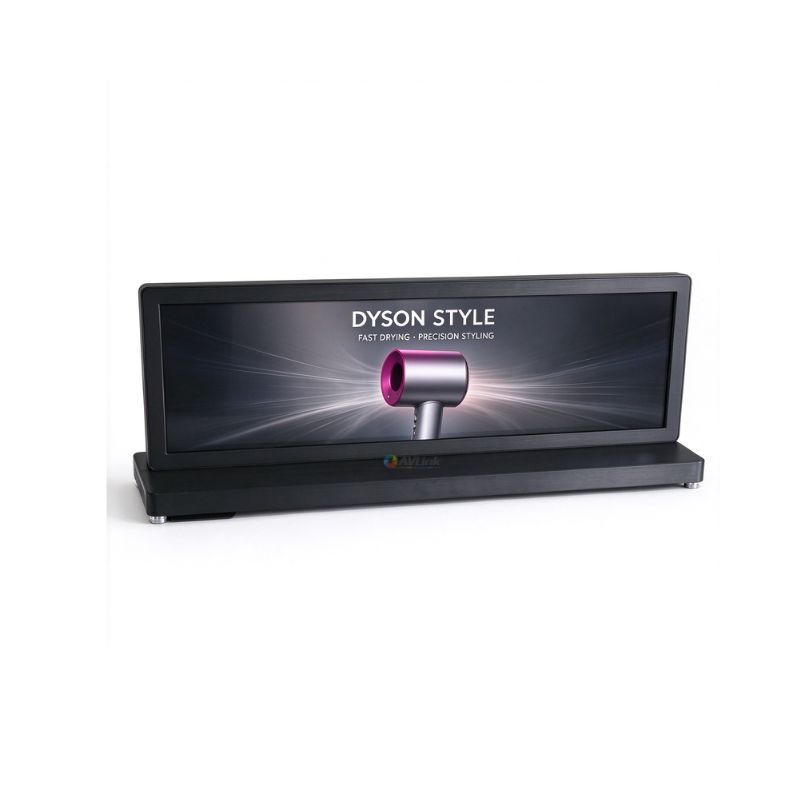

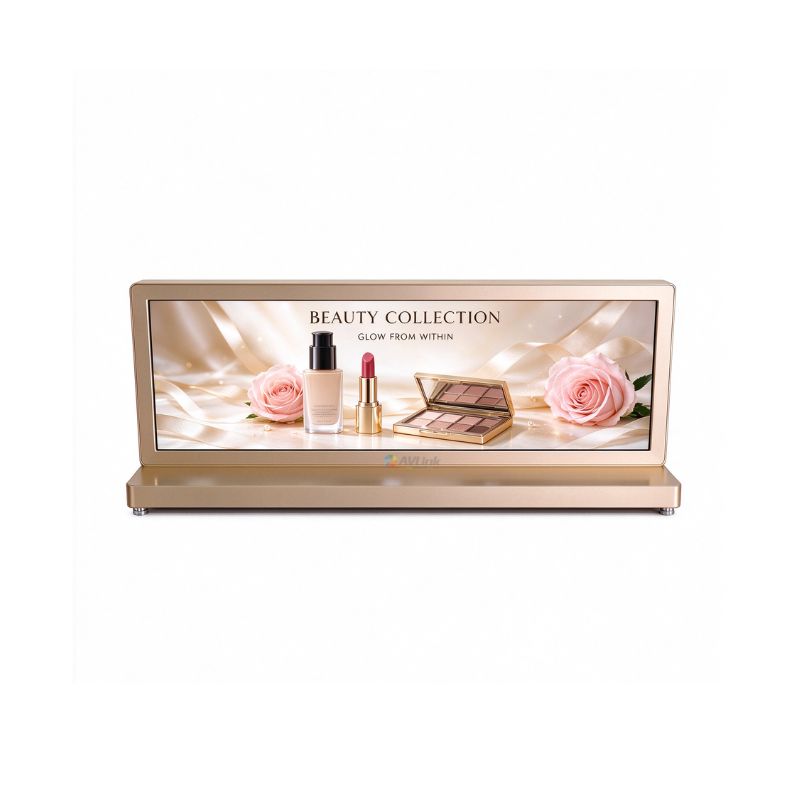

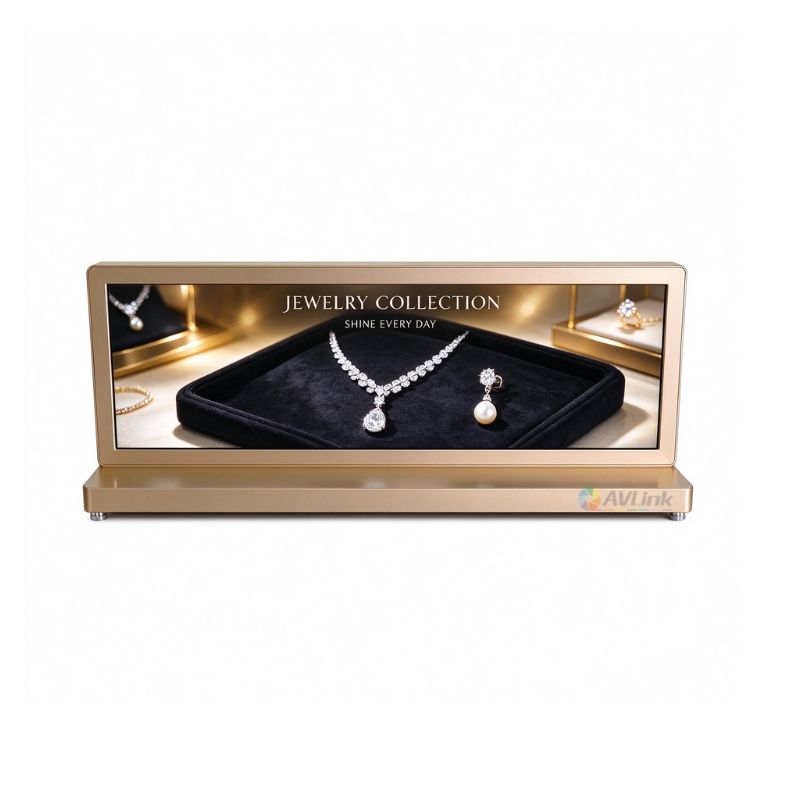

Avlink 29 Inch Dual-Sided Stretch Bar Digital Signage Key Feature
| Model | AVL-ID286S |
|---|---|
| Size | 28.6inch |
| Resolution | 1920*540 |
| Operating system | Android 9/11/13/14 |
| Color | Black, Gold, RAL color option |
| Application | Indoor |
| Production Time | 3-5 days |
28.6 Inch Stretch Bar Digital Signage, Dual Sided Android 11 Stretched LCD Display, 1920×540 32:9 Ultra Wide Screen, 2GB RAM+32GB ROM, Built-in Cloud CMS, Remote Control via Phone & PC, All Aluminum Alloy Frameless Commercial Advertising Screen for Retail Luxury Cosmetic Jewelry Store
✅ 28.6″ 32:9 Ultra-Wide Stretch Display | Dual-Sided Design Comes with 1920×540 high resolution, 32:9 ultra-wide stretched aspect ratio. Dual-sided screen design delivers double advertising exposure, ideal for countertop and shelf display in retail shops.
✅ Android 11 OS, 2GB RAM +32GB ROM Powered by stable Android 11 system. 2GB RAM ensures smooth playback of images and videos; 32GB internal storage saves plenty of advertising materials locally. Supports auto boot, scheduled on/off and loop playback.
✅ Free Cloud CMS | Remote Management from Phone & PC Equipped with complimentary cloud CMS platform. Remotely edit, upload and schedule your advertising content anytime via mobile phone or computer. No on-site operation required for content updates, easy for multi-store management.
✅ Premium All-Aluminum Alloy Housing, Screw-Free Surface Adopts full aluminum alloy profile with seamless screw-free appearance. Solid, anti-scratch and elegant minimalist look, perfectly matches high-end retail scenes for luxury goods, jewelry, cosmetics and mobile phone stores.

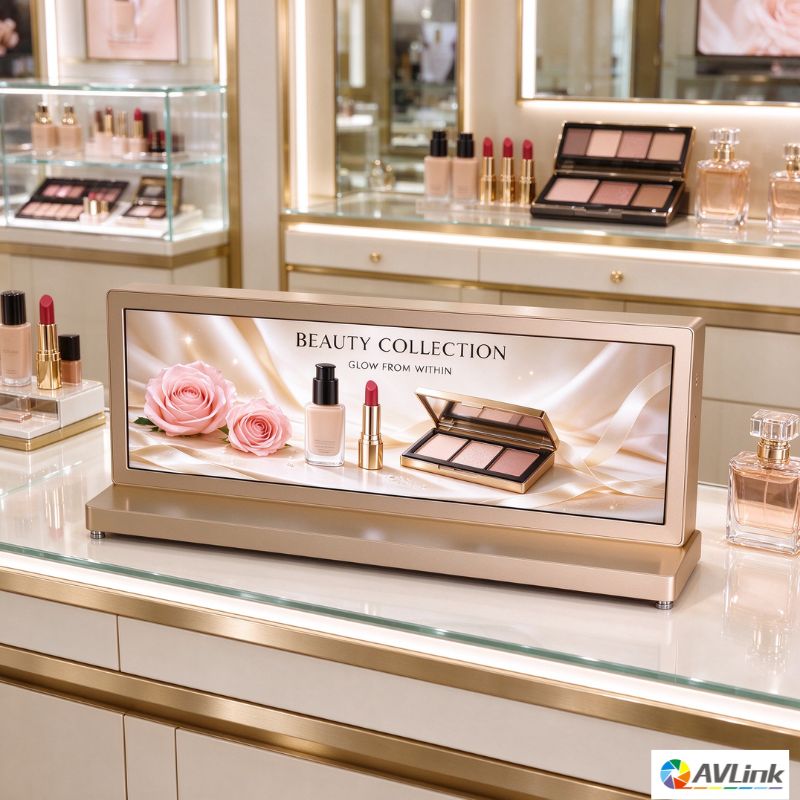

✅ Wide Commercial Application This stretched bar display is a premium marketing tool for retail counters, checkout counters, product shelves, luxury boutiques, cosmetic shops, jewelry stores and mobile phone stores to showcase promotions, product ads and brand visuals.
This 28.6-inch stretched digital signage features a unique 32:9 ultra-wide aspect ratio with 1920×540 resolution and dual-sided display, maximizing your brand exposure at retail counters. Running on Android 11 OS with 2GB RAM and 32GB ROM, it guarantees stable and fluent playback of your promotional videos, images and slideshows.
Free Cloud CMS Included You gain access to our free cloud CMS system. You can remotely control, update, schedule advertising programs easily by your smartphone or PC. Manage one screen or hundreds of screens across multiple stores remotely, saving huge labor cost for content replacement.
Built with full aluminum alloy profile and a sleek screw-free surface, the housing brings an upscale, clean aesthetic. It is a high-end commercial marketing weapon widely used in mobile phone shops, cosmetic boutiques, jewelry stores and luxury brand showrooms, perfectly fitting counter and shelf display scenarios to attract customer attention and boost sales.
Key Specifications:
| Specifications | |||
| TFT Panel | |||
| Model No. | AVL-ID286S | ||
| Panel size | 28.6” TFT-LCD | ||
| Display area(mm)/mode | 698*196 | ||
| Maximum resolution | 1920*540 | ||
| Display color | 16.7M | ||
| Brightness (nits) | 400cd/㎡ | ||
| Contrast | 4000:1 | ||
| Visual angle | 178°/178° | ||
| Response time | 5ms | ||
| Life(hrs) | >60,000(hrs) | ||
| Touch | No | ||
| Interface | HDMI input | ||
| System (optional) | |||
| Operating system | Android 9.0/11.0/13.0 | ||
| RAM | 2GB/4GB/8G | ||
| ROM | 16GB/32G/64G | ||
| Interface | USB, LAN, Wi-Fi, Bluetooth | ||
| System (optional) | |||
| Operating system | Windows 10/11 pro, i5/i7/i9 | ||
| RAM | 4G/8G/16G | ||
| SSD | 128G/256G/512G | ||
| Interface | USB, LAN, Wi-Fi, Bluetooth | ||
| Appearance | |||
| Color/appearance | Black, Gold, customized | ||
| Case | Metal case SPCC | ||
| Dimension(H*W*D)mm | 744*272*30 | ||
| Net Weight | 36kg | ||
| Installation | Desktop | ||
| Electricity | |||
| Power supply | AC100~240V 50 /60 HZ | ||
| Maximum power consumption | 100w | ||
| Standby power consumption | <5w | ||
| Speaker | 2*5W (8Ω) | ||
| Temperature | |||
| Working temperature | 0℃～40℃ | ||
| Storage temperature | 0℃~60℃ | ||
| Working humidity | 20%~80% | ||
| Storage humidity | 5%~95% | ||
| Detailed functions | |||
| Video Format | MPEG1/MPEG2/MPEG4/DIVX/ASP/WMV/AVI | ||
| Audio Format | WAVE/MP3/WMA/AAC | ||
| Image Format | JPEG/BMP/TIFF/PNG/GIF | ||
| Image Resolution | 480P/720P/1080P/3840P | ||
Shenzhen Avlink Technology is a leading manufacturer specializing in high-quality digital signage and innovative display solutions. With a 4,000-square-meter factory and a dedicated R&D team of 6 experts, we deliver customized digital display screens tailored to your unique needs—providing design drawings within just 1 day.
Comprehensive Product Range – Offering 1,000+ digital advertising screens, including:
Fast Production & Global Reach
3 days lead time for quick delivery
10+ years of export experience, shipping to 70+ countries
Certified with COO, CE-LVDS, CE-EMC, FCC, RoHS, CSA, and KC, SGS, Bureau Veritas
End-to-End Support
On-site installation services for seamless deployment, available in Israel, Italy, France, Netherlands, Germany, Sweden, Switzerland, USA, Canada, Mexico, Oman, Dubai, China Macau, China Hong Kong etc.
24/7 after-sales support to ensure uninterrupted operation
Avlink combines cutting-edge technology, rapid production, and reliable service to power your digital advertising screens with excellence
