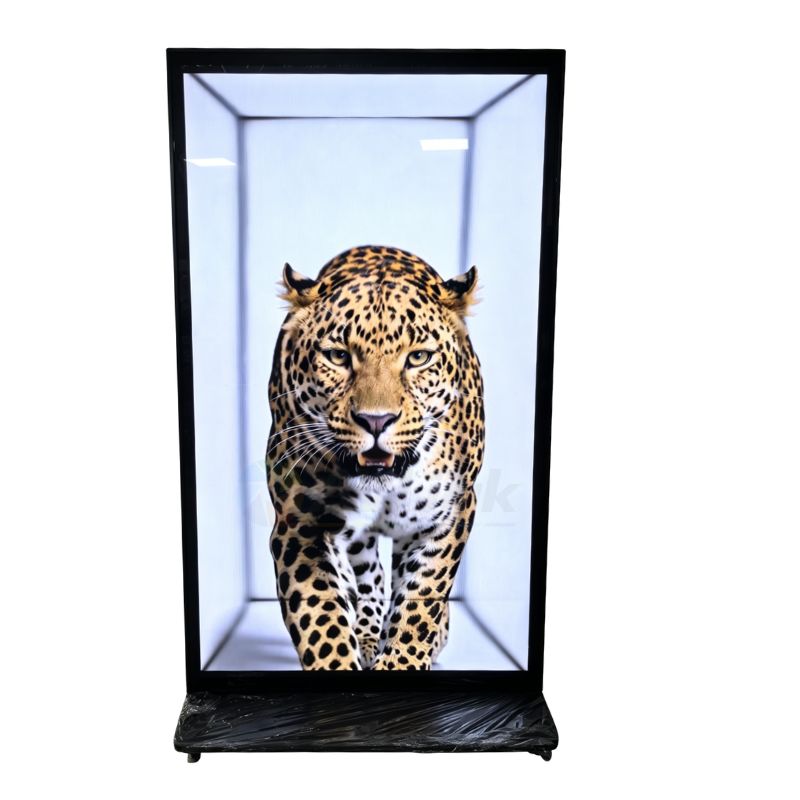

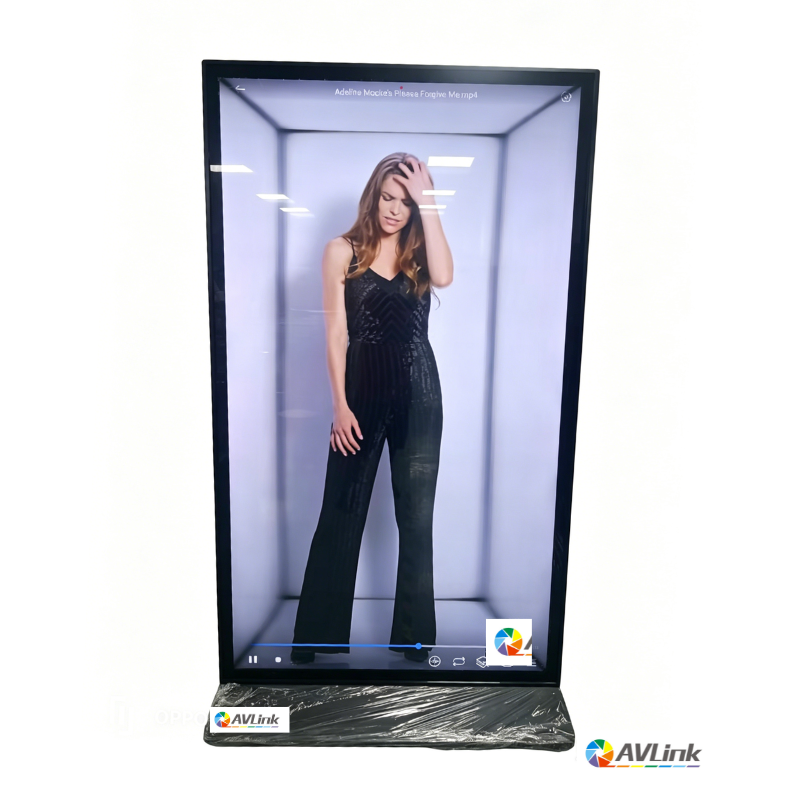

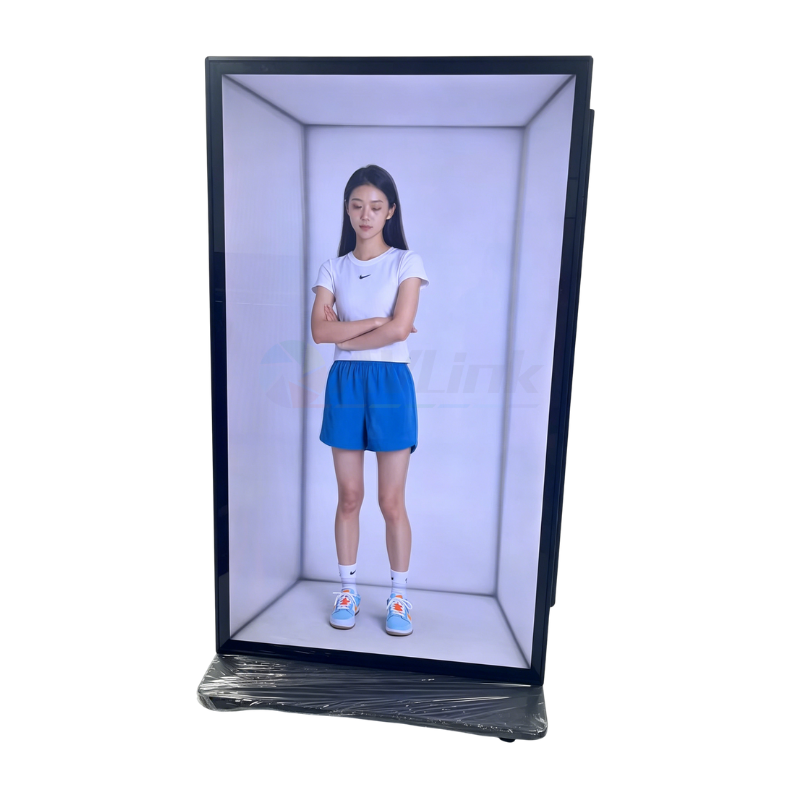

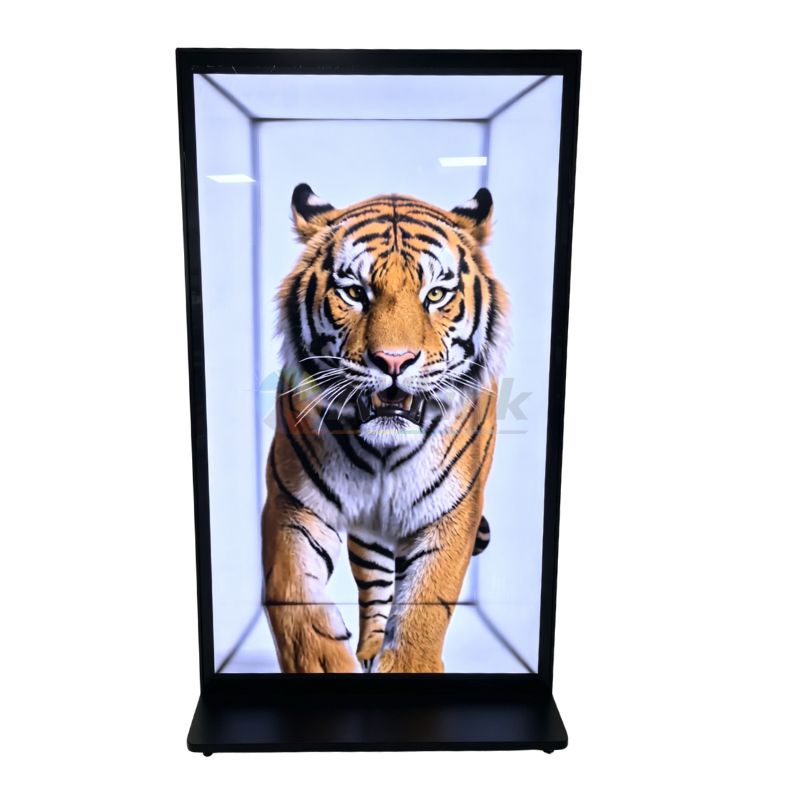

AVLink 86 inch Spatial Signage 3D Commercial Display
| Model | AVL-ID860SS |
|---|---|
| Size | 32inch, 86inch |
| Resolution | 3840*2160 |
| Operating system | Android 9/11/13/14, Windows 10/11 Pro |
| Color | RAL color option |
| Application | Indoor |
| Production Time | 20-25 days |
| Options | Brand logo |
AVLink 86 inch Spatial Signage 3D Commercial Display, 4K resolution, slim thickness 90mm, creates immersive authentic visuals with innovative display.
Immersive 3D Screen — Materialize Your Brand Image
Advanced display tech presents ultra-realistic visual effects
Slim Profile Design
Merely 90mm thin chassis delivers vivid 3D effects. Simple installation same as regular displays. Lightweight and space-efficient, fitting all application occasions perfectly.
Usage Scenarios:
| Specifications | |||
| TFT Panel | |||
| Model | AVL-ID860SS | ||
| Panel size | 86inch | ||
| Resolution | 2160*3840 (9:16) | ||
| Brightness (nits) | 400nits | ||
| Orientation | Portrait | ||
| Contrast Ratio(Typ.) | 5000:1 | ||
| Active Display Area | 1065.96(H) × 1895.04(V) | ||
| Operation Hour | 24/7 | ||
| Display color | 16.7M | ||
| Visual angle | 178°/178° | ||
| Response time | <6.5ms | ||
| Operating system | |||
| Operating system | Android 13 | ||
| RAM | 4G | ||
| ROM | 64G | ||
| Input | HDMI*1, USB2.0*2, RJ45, TF card | ||
| HDMI input | 480i, 480p, 576i, 576p, 720p,1080i, 1080P, 2160p | ||
| Output | Stereo mini Jack | ||
| Headphone Jack | 3.5mm headphone jack, one dual-channel speaker output port. | ||
| Speaker | 5W*2 | ||
| Appearance | |||
| Enclosure color | Black, customized RAL | ||
| Enclosure material | Metal | ||
| Dimension(L*W*D)mm | 2023.4*1144.4*89.5mm | ||
| Weight | 110kg | ||
| Gross weight | 130kg | ||
| Electricity | |||
| Power supply | AC100~240V 50 /60 HZ | ||
| Maximum power consumption | <400W | ||
| Temperature | |||
| Working temperature | 0℃～40℃ | ||
| Storage temperature | -5℃~45℃ | ||
| Working humidity | 20～80% RH | ||
| Storage humidity | 20～90% RH | ||
| Accessories include | Quick Setup Guide, Warranty Card, Power Cord, Remote Controller (no batteries), wall bracket | ||
Avlink 86inch spatial signage 3D commercial display:
About AVLink:
Shenzhen Avlink Technology Co., Ltd – Your Trusted Digital Signage Partner
Shenzhen Avlink Technology is a leading manufacturer specializing in high-quality digital signage and innovative display solutions. With a 4,000-square-meter factory and a dedicated R&D team of 6 experts, we deliver customized digital display screens tailored to your unique needs—providing design drawings within just 1 day.
Comprehensive Product Range – Offering 1,000+ digital advertising screens, including:
Fast Production & Global Reach
3 days lead time for quick delivery
10+ years of export experience, shipping to 70+ countries
Certified with COO, CE-LVDS, CE-EMC, FCC, RoHS, CSA, and KC, SGS, Bureau Veritas
End-to-End Support
On-site installation services for seamless deployment, available in Israel, Italy, France, Netherlands, Germany, Sweden, Switzerland, USA, Canada, Mexico, Oman, Dubai, China Macau, China Hong Kong etc.
24/7 after-sales support to ensure uninterrupted operation
Avlink combines cutting-edge technology, rapid production, and reliable service to power your digital advertising screens with excellence
