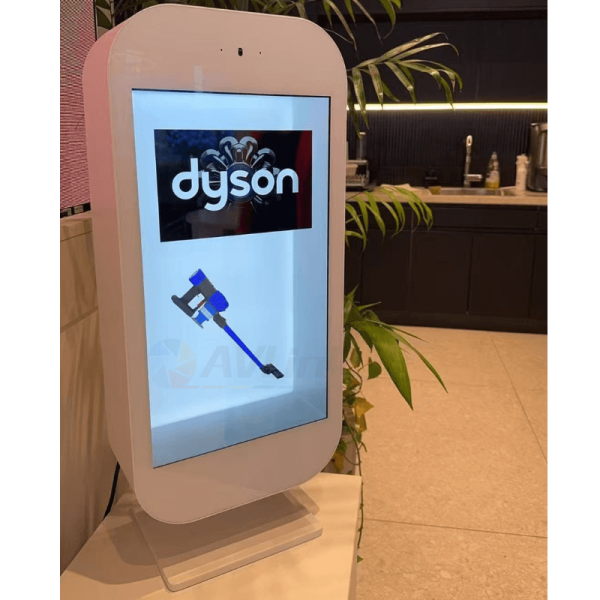

22inch Transparent Holobox Mini Holographic Display Key Feature
The AVLink 22inch Holobox Mini incorporates identical holographic engine technology as our 86inch and 98inch human-sized hologram system, condensed into a compact, transportable form factor. Maintaining full plug-and-play functionality, it requires only power and network connectivity for immediate operation
Only 15kg for easy movement, and options flight case for mobile movement, default package is wooden case or honey beam carton.
| Model | AVL-ID215 |
|---|---|
| Size | 22inch |
| Resolution | 1920*1080 |
| Touch | Capacitive touch screen |
| Color | Black, RAL color option, White |
| Operating system | Android 9/11/13/14, HDMI input, Windows 10/11 Pro |
| Application | Indoor |
| Production Time | 3-5 days |
22inch Transparent Holobox Mini Holographic Display, PCAP touch screen, built-in Android 11.0, 4G RAM and 32G ROM, HDMI input connect to PC, send inquiry now!
The Holobox Mini delivers the identical premium holographic experience as 86inch and 98inch human sized hologram. Maintaining full image fidelity and performance, this streamlined solution brings wow-factor holography to countertops, retail displays, and compact environments.

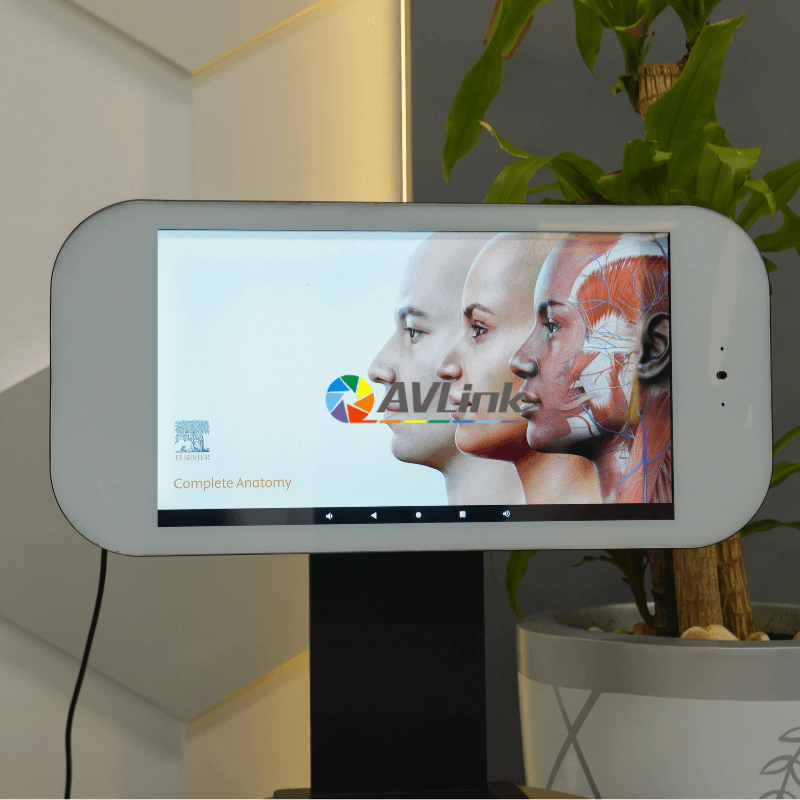

Avlink 22inch holobox mini, equipped with auto-rotate screen, works perfectly in both portrait and landscape mode!
22inch holobox mini hologram with 20-point multi-touch screen enables engaging passenger interaction with responsive, intuitive controls for seamless user experiences.
Dual-Mode Highlight
Avlink 22inch hologram mini with dual operation modes:
① Standalone Android system (latest OS)
② External display mode via HDMI (PC/laptop compatible)
Seamlessly switch between autonomous and connected use.
| Specifications | |||
| TFT Panel | |||
| Model No. | AVL-ID215TS | ||
| Panel size | 21.5 inch TFT-LCD | ||
| Display area(mm)/mode | 476.064(H) × 267.786(V) | ||
| Maximum resolution | 1920*1080 | ||
| Display colour | 16.7M | ||
| Brightness (nits) | 300cd/㎡ | ||
| Contrast | 1200:1 | ||
| Visual angle | 178°/178° | ||
| Response time | 6ms | ||
| Life(hrs) | >60,000(hrs) | ||
| Touch | PCAP touch screen | ||
| Operating system | |||
| Operating system | Android 11.0 | ||
| RAM | 4G | ||
| ROM | 32G | ||
| Interface | HDMI input, USB, LAN, Wi-Fi | ||
| Appearance | |||
| Colour/appearance | White, black, customized | ||
| Case | Metal | ||

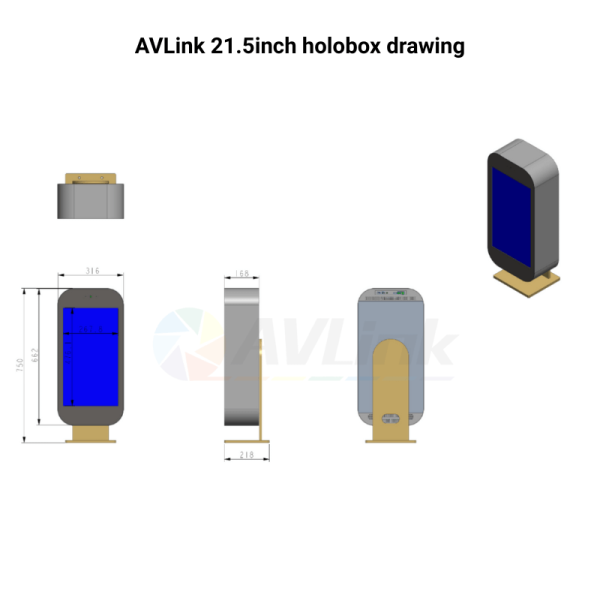

| Dimension(L*W*D)mm | 750*316*218 | ||
| Weight | 15kg | ||
| Electricity | |||
| Power supply | AC100~240V 50 /60 HZ | ||
| Maximum power consumption | <80W | ||
| Standby Power consumption | <3w | ||
| Speaker | 8Ω 5W*2 | ||
| Temperature | |||
| Working temperature | 0℃～40℃ | ||
| Storage temperature | -10℃~60℃ | ||
| Working humidity | 85% | ||
| Storage humidity | 85% | ||
Shenzhen Avlink Technology is a leading manufacturer specializing in high-quality digital signage and innovative display solutions. With a 4,000-square-meter factory and a dedicated R&D team of 6 experts, we deliver customized digital display screens tailored to your unique needs—providing design drawings within just 1 day.
Comprehensive Product Range – Offering 1,000+ digital advertising screens, including:
Fast Production & Global Reach
3 days lead time for quick delivery
10+ years of export experience, shipping to 70+ countries
Certified with COO, CE-LVDS, CE-EMC, FCC, RoHS, CSA, and KC, SGS, Bureau Veritas
End-to-End Support
On-site installation services for seamless deployment, available in Israel, Italy, France, Netherlands, Germany, Sweden, Switzerland, USA, Canada, Mexico, Oman, Dubai, China Macau, China Hong Kong etc.
24/7 after-sales support to ensure uninterrupted operation
Avlink combines cutting-edge technology, rapid production, and reliable service to power your digital advertising screens with excellence.
