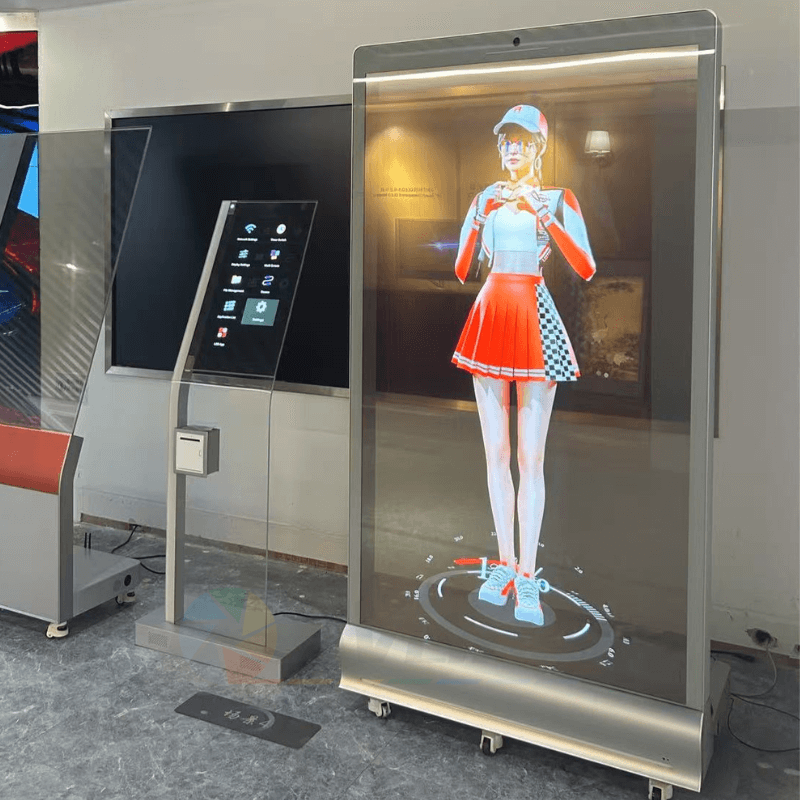

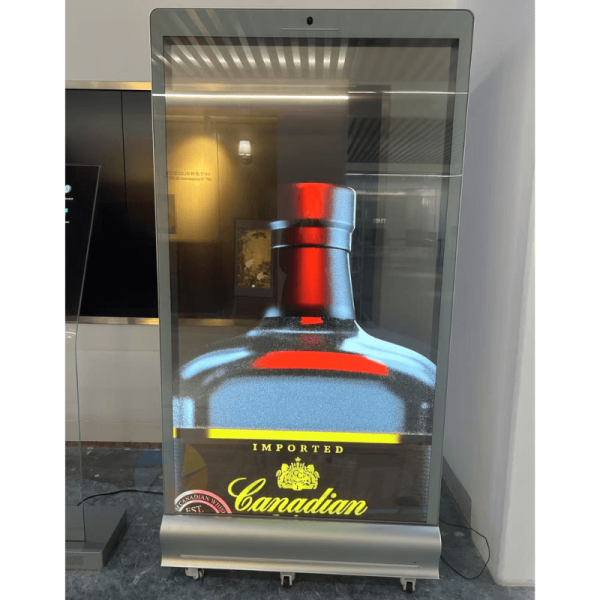

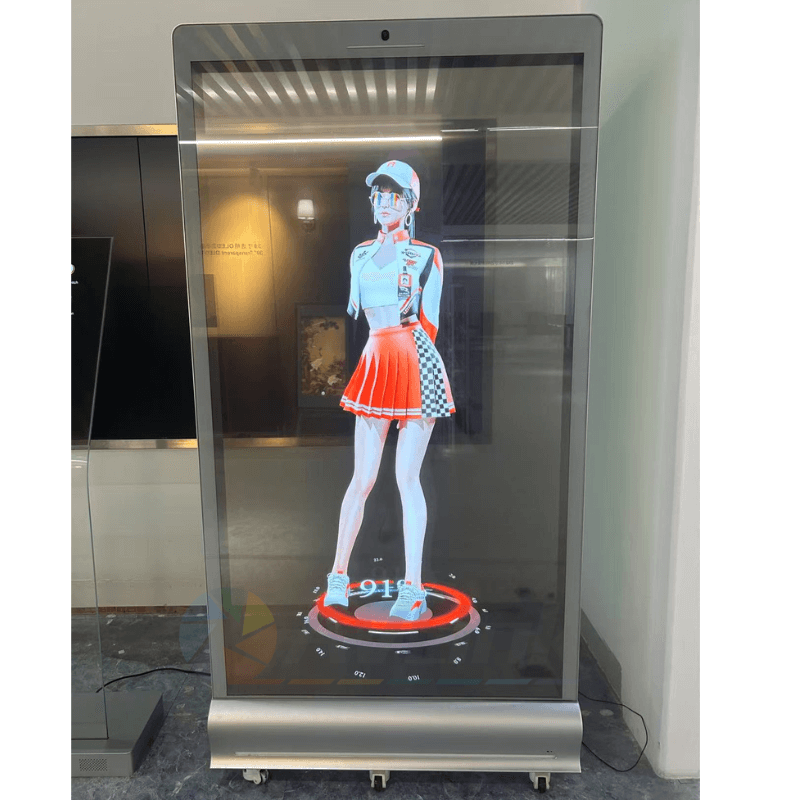

Avlink 77inch Transparent OLED Display Interactive Kiosk Key Feature
77inch transparent OLED panel with 3840*2160 resolution
Multi-touch enabled (20-point simultaneous)
43% transparency ratio for augmented reality effects
Designed for luxury retail, museums, and corporate lobbies
Supports gesture and stylus input
| Model | AVL-ID770O |
|---|---|
| Size | 30inch, 55inch, 77inch |
| Color | Black, RAL color option, White |
| Touch | Capacitive touch screen |
| Operating system | Android 9/11/13/14, HDMI input, Windows 10/11 Pro |
| Application | Indoor |
| Production Time | 10-15 days |
77inch Transparent OLED Display Interactive Kiosk, 3840*2160 ultra HD 4K resolution, LG panel high brightness 600nits, 43% transparency, PCAP touch available, send inquiry now!
Avlink 77inch transparent OLED signage adapt high quality LG panel, model number LW770PQL
LG’s Transparent OLED Signage achieves 43% transparency through innovative panel technology, eliminating traditional backlight and LCD layers. This creates a striking see-through effect that superimposes digital content onto real-world backgrounds.
Designed for sophistication, this transparent display seamlessly integrates with luxury interiors, featuring a minimalist metal frame that blends into walls or furniture while creating an airy, connected space.
Modular Design for Seamless Integration
Our enhanced mechanical engineering enables versatile installation options – deploy as a standalone unit or combine multiple displays to create expansive transparent walls. This adaptable solution integrates effortlessly with existing architectural elements while elevating your space with modern sophistication and an airy, open aesthetic.
Ideal for:
• Luxury product showcases (retail)
• Interactive digital exhibitions (museums)
• Corporate wayfinding (lobbies)
• High-tech brand experiences
Command attention with cutting-edge display technology that transforms passive viewing into captivating, interactive exhibition experiences.(Exhibitions)
By blending stunning transparency with vibrant content, LG’s solution redefines spatial interaction—turning any environment into an engaging, future-forward experience.
| Specifications | |||
| Panel | |||
| Model No. | AVL-ID770OLED | ||
| Panel size | 77” TFT-LCD | ||
| Display area(mm)/mode | 1697.28(V)*954.72(H) | ||
| Maximum resolution | 3840*2160 | ||
| Display colour | 16.7M | ||
| Brightness (nits) | 600cd/㎡ | ||
| Contrast | 150000:1 | ||
| Visual angle | 178°/178° | ||
| Response time | 5ms | ||
| Life (hrs) | >60,000(hrs) | ||
| Interface | HDMI input | ||
| Appearance | |||
| Colour/appearance | White, black, customized | ||
| Case | Metal case SPCC with tempered glass | ||
| Dimension | 1971.5*1040*105 | ||
| Installation | floor-standing | ||
| Electricity | |||
| Power supply | AC100~240V 50 /60 HZ | ||
| Maximum power consumption | 480w | ||
| Standby power consumption | <5w | ||
| Speaker | Yes | ||
| Touch | Optional PCAP | ||
| Temperature | |||
| Working temperature | 0℃～40℃ | ||
| Storage temperature | -10℃~60℃ | ||
| Working humidity | 20%~80% | ||
| Storage humidity | 5%~95% | ||
| Detailed functions | |||
| Video Format | MPEG1/MPEG2/MPEG4/DIVX/ASP/WMV/AVI | ||
| Audio Format | WAVE/MP3/WMA/AAC | ||
| Image Format | JPEG/BMP/TIFF/PNG/GIF | ||
| Image Resolution | 480P/720P/1080P/3840P | ||
| Information | |||
| Terms | Unit Price (EXW Shenzhen) | ||
| Unit price | |||
| Lead time | 12~15 working days | ||
| Payment term | 50% deposit, 50% balance before shipment | ||
| Warranty | 1 year free warranty, lifelong technical support | ||
| Price validation | One month | ||
Shenzhen Avlink Technology is a leading manufacturer specializing in high-quality digital signage and innovative display solutions. With a 4,000-square-meter factory and a dedicated R&D team of 6 experts, we deliver customized digital display screens tailored to your unique needs—providing design drawings within just 1 day.
Comprehensive Product Range – Offering 1,000+ digital advertising screens, including:
Fast Production & Global Reach
3 days lead time for quick delivery
10+ years of export experience, shipping to 70+ countries
Certified with COO, CE-LVDS, CE-EMC, FCC, RoHS, CSA, and KC, SGS, Bureau Veritas
End-to-End Support
On-site installation services for seamless deployment, available in Israel, Italy, France, Netherlands, Germany, Sweden, Switzerland, USA, Canada, Mexico, Oman, Dubai, China Macau, China Hong Kong etc.
24/7 after-sales support to ensure uninterrupted operation
Avlink combines cutting-edge technology, rapid production, and reliable service to power your digital advertising screens with excellence
