| Model | AVL-ID690TS |
|---|---|
| Size | 10.1inch, 15.6inch, 22inch, 32inch, 43inch, 49inch, 55inch, 65inch, 69inch, 75inch, 86inch, 98inch |
| Resolution | 3840*1488 |
| Touch | Infrared touch screen |
| Operating system | Android 9/11/13/14, HDMI input, Windows 10/11 Pro |
| Color | Black, RAL color option, White |
| Application | Indoor |
| Production Time | 10-15 days |

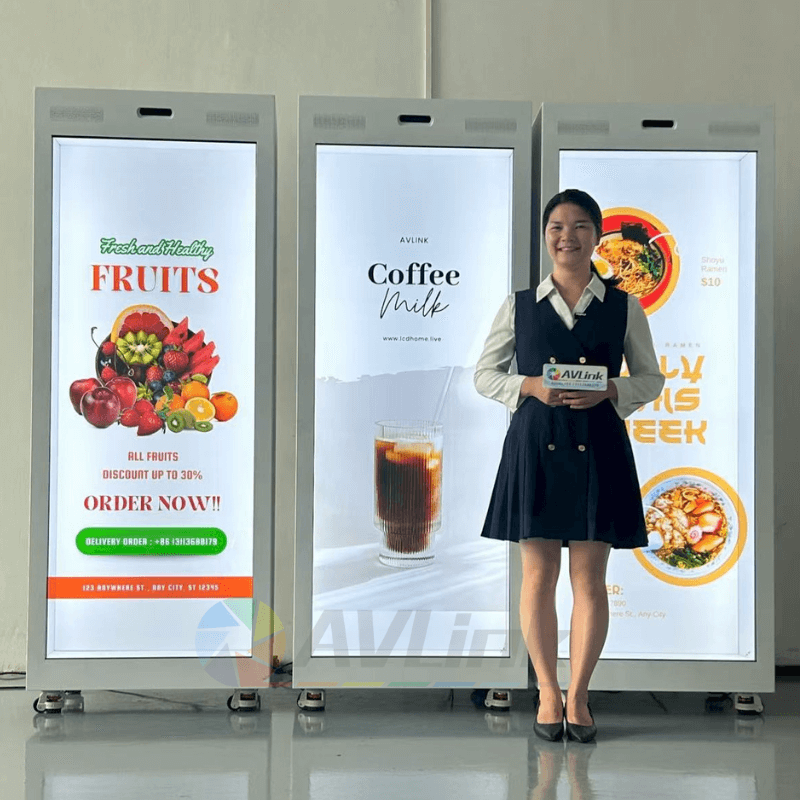

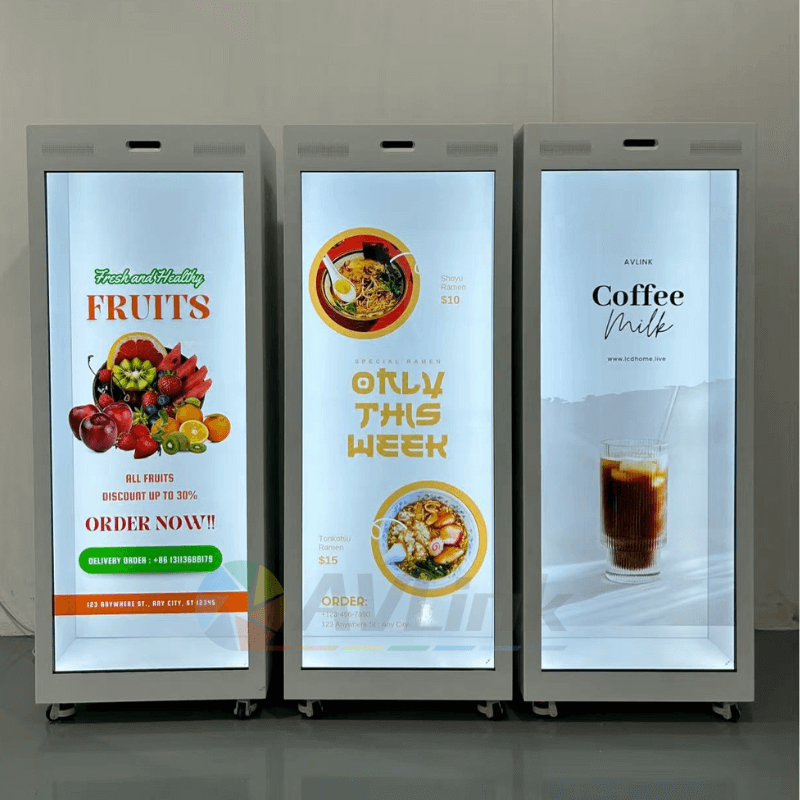

69 inch 3D Transparent Holobox Hologram, 3840*1488 high resolution, equipped with affordable AI avatar software, delivery immersive digital experience, buy now!
Command attention without commanding space with the AVL-ID690TS. This isn’t just another large-format screen; it’s a strategically engineered narrow-width holographic display designed for environments where vertical impact and space efficiency are paramount. Its unique 1635.8×634.39mm (3840×1488 resolution) canvas delivers an immersive, human-scale holographic experience that wider formats can’t match.
Key Differentiators:
Strategic Narrow Form Factor: Unlike the common 86-inch wide screens, our 69-inch display offers a taller, more focused aspect ratio. This creates an intense, vertically oriented viewing experience that feels naturally immersive and is ideal for full-body holograms, interactive kiosks, and spaces with width constraints.
High-Fidelity Holographic Performance: Experience stunning 3D visuals with 400 nits brightness and 1200:1 contrast, ensuring your holographic content appears vibrant and lifelike, even in well-lit environments.
Powerful Integrated Computing: Optional Windows 10 Pro with i5/i7 processors and high-end GPU options (3060/4070) provide the serious computational power required to render complex 3D models and interactive holographic applications seamlessly.
Complete Collaboration Hub: Equipped with an optional Logitech camera, microphone, and 8Wx2 speakers, it transforms into a full-featured telepresence solution for holographic conferencing and remote collaboration.
Interactive Depth Sensing: The IR touch system is engineered to interpret gestures and interactions with holographic elements, moving beyond simple 2D touch into a truly three-dimensional interface.
Perfect for Space-Conscious Applications:
Retail Endcaps & Narrow Aisles: Fit into spaces where traditional wide screens cannot, creating stunning product holograms that stop traffic without blocking it.
Corporate Lobbies & Elevator Banks: Make a powerful technological statement in vertical spaces without overwhelming the architecture.
Interactive Museum Exhibits: Create intimate, life-sized holographic encounters with historical figures or artifacts in exhibits with limited floor print.
Showroom Product Configurators: Allow customers to interact with life-size, customizable 3D product holograms in a compact footprint.
Why its Narrow Width is an Advantage:
This display proves that bigger isn’t always wider. Its intentional vertical design creates a more intimate and impactful viewer connection, perfect for showcasing full-length human holograms, vertical data visualizations, and interactive content in spaces where every centimetre counts. It delivers maximum presence with minimal footprint.
Redefine Spatial Interaction: The AVL-ID690TS is engineered for those who need to make a monumental impact in a streamlined space. It’s the definitive solution for cutting-edge holographic communication where precision placement is as critical as technological power.
| Specifications | |||
| TFT Panel | |||
| Model No. | AVL-ID690TS | ||
| Panel size | 69 inch TFT-LCD | ||
| Display area(mm)/mode | 1635.8(H) × 634.39(V) | ||
| Maximum resolution | 3840*1488 | ||
| Display colour | 16.7M | ||
| Brightness (nits) | 400cd/㎡ | ||
| Contrast | 1200:1 | ||
| Visual angle | 178°/178° | ||
| Response time | 6ms | ||
| Life(hrs) | >60,000(hrs) | ||
| Touch | IR touch | ||
| Interface | HDMI input | ||
| Operating system(option) | |||
| Operating system | Windows 10 Pro, i5/i7 | ||
| RAM | 4G/8G | ||
| SSD | 128G/256G | ||
| Interface | USB, LAN | ||
| GPU | 3060/4070 optional | ||
| Software | Option | ||
| Appearance | |||
| Color/appearance | White, black, customized RAL | ||
| Case | Metal | ||
| Dimension(L*W*D)mm | 1970*750.4*535.3mm | ||
| Electricity | |||
| Power supply | AC100~240V 50 /60 HZ | ||
| Maximum power consumption | <380W | ||
| Power consumption | <3w | ||
| Speaker | 5W*2 | ||
| Camera | Yes, Logitech option | ||
| Microphone | Yes | ||
| Temperature | |||
| Working temperature | 0℃～40℃ | ||
| Storage temperature | -10℃~60℃ | ||
| Working humidity | 85% | ||
| Storage humidity | 85% | ||
About AVLink:
Shenzhen Avlink Technology Co., Ltd – Your Trusted Digital Signage Partner
Shenzhen Avlink Technology is a leading manufacturer specializing in high-quality digital signage and innovative display solutions. With a 4,000-square-meter factory and a dedicated R&D team of 6 experts, we deliver customized digital display screens tailored to your unique needs—providing design drawings within just 1 day.
Comprehensive Product Range – Offering 1,000+ digital advertising screens, including:
Fast Production & Global Reach
3 days lead time for quick delivery
10+ years of export experience, shipping to 70+ countries
Certified with COO, CE-LVDS, CE-EMC, FCC, RoHS, CSA, and KC, SGS, Bureau Veritas
End-to-End Support
On-site installation services for seamless deployment, available in Israel, Italy, France, Netherlands, Germany, Sweden, Switzerland, USA, Canada, Mexico, Oman, Dubai, China Macau, China Hong Kong etc.
24/7 after-sales support to ensure uninterrupted operation
Avlink combines cutting-edge technology, rapid production, and reliable service to power your digital advertising screens with excellence
