Avlink 55 inch Smart Touch Table Interactive Screen Key Feature
21.5inch, 32inch, 43inch and 55inch touch table available
PCAP touch screen
Integrated various software
Detachable structure will save a lot of shipping costs
| Model | AVL-ID550TD |
|---|---|
| Size | 22inch, 32inch, 43inch, 55inch |
| Resolution | 1920*1080, 3840*2160 |
| Touch | Capacitive touch screen |
| Operating system | Android 9/11/13/14, HDMI input, Windows 10/11 Pro |
| Color | Black, RAL color option, White |
| Application | Indoor |
| Production Time | 3-5 days |

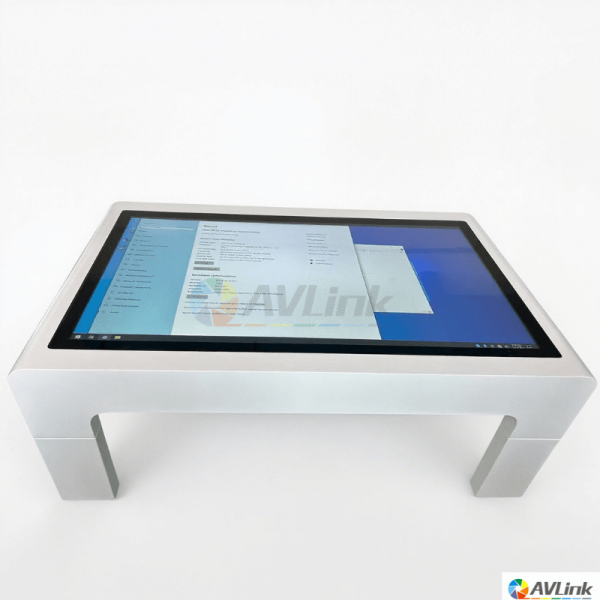

55 inch Smart Touch Table Interactive Screen, Avlink touch table with 55inch commercial grade 4K LCD display, PCAP multi-touch technology, toughened safety glass
Introducing the AVL Touch Table Series: Where Collaboration Meets Cutting-Edge Interaction
Transform any space into an interactive hub with the AVL Touch Table Series – a range of professional-grade interactive displays designed for seamless collaboration, immersive learning, and dynamic customer engagement. Available in 32″, 43″, and 55″ sizes, these tables combine robust construction with advanced touch technology to create the ultimate interactive solution.
Multi-Size Flexibility: Choose from 32″, 43″, or 55″ models to fit your space and application needs – from compact meeting rooms to large collaborative environments.
High-Precision Touch Experience: Features 10-point capacitive touch with ±2mm accuracy, 92% transmittance, and 7H hardness for smooth, responsive, and durable interaction.
Vivid Visual Performance: Enjoy Full HD clarity with 350 nits brightness, 3000:1 contrast ratio, and wide 178° viewing angles, ensuring vibrant visuals from any position.
Powerful Built-In Computing: Optional Android or Windows OS with up to 4GB RAM and 128GB storage provides standalone operation for apps, presentations, and multimedia.
Robust & Mobile Design: Built with sturdy SPCC metal cases and equipped with freestanding mobility, these tables are ready for dynamic environments like classrooms, showrooms, and corporate spaces.
Unlike conventional displays, this series is engineered for face-to-face collaboration and durable daily use. The combination of commercial-grade components, sleek aesthetics, and versatile software compatibility makes these tables ideal for education, retail, hospitality, and enterprise applications.
Education: Interactive learning and group activities in classrooms and libraries.
Corporate: Collaborative brainstorming and presentations in meeting rooms and lobbies.
Retail: Engaging product catalogs and wayfinding in stores and showrooms.
Hospitality: Interactive menus and entertainment in hotels and restaurants.
Experience the future of collaboration with the AVL Touch Table Series – where innovation, durability, and flexibility come together to inspire creativity and connection.
| Specifications | |||
| TFT Panel | |||
| Model No. | AVL-ID550TD | ||
| Panel size | 55inch TFT-LCD | ||
| Display area(mm)/mode | 1208.6*679.4 | ||
| Maximum resolution | 3840*2160 | ||
| Display color | 16.7M | ||
| Brightness (nits) | 350cd/㎡ | ||
| Contrast | 3000:1 | ||
| Visual angle | 178°/178° | ||
| Response time | 2ms | ||
| Life(hrs) | >60,000(hrs) | ||
| Touch | |||
| Type | Capacitive touch | ||
| Positioning accuracy | ±2mms | ||
| Transmittance | 92% | ||
| Hardness | 7H | ||
| Click manner | 10 points | ||
| Response time | 5ms | ||
| Lick life time | >=60M times | ||
| Operating System | |||
| Operating system | Android | ||
| RAM | 2G or 4G | ||
| ROM | 16G or 32G | ||
| Interface | HDMI, RJ-45, USB | ||
| Operating System | |||
| Operating system | Windows 10/11 pro, i5/i7 | ||
| RAM | 4G/8G | ||
| ROM | 128G/256G | ||
| Interface | HDMI, RJ-45, USB | ||
| Appearance | |||
| Color/appearance | White+black etc, customized | ||
| Case | Metal case SPCC | ||

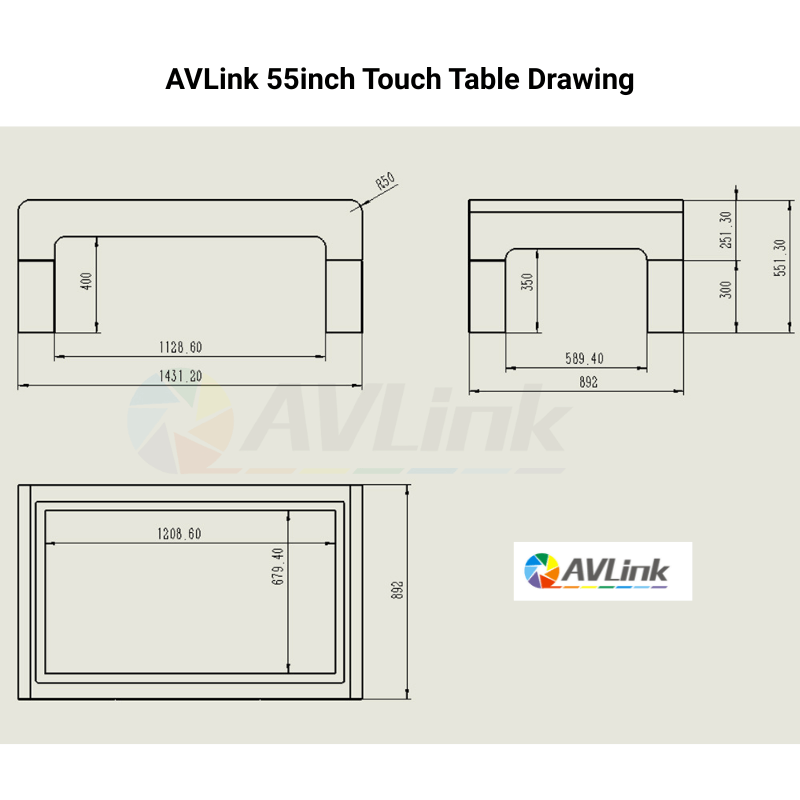

| Dimension(H*W*D)mm | 1431.2*892*551.3 | ||
| Wooden case package(mm) | 1514*977*450 | ||
| Gross weight | 97kg | ||
| Installation | Free-standing | ||
| Electricity | |||
| Power supply | AC100~240V 50 /60 HZ | ||
| Maximum power consumption | 75w | ||
| Standby power consumption | <5w | ||
| Speaker | Yes | ||
| Temperature | |||
| Working temperature | 0℃~50℃ | ||
| Storage temperature | -10℃~60℃ | ||
| Working humidity | 20%~80% | ||
| Storage humidity | 5%~95% | ||
| Detailed functions | |||
| Video Format | MPEG1/MPEG2/MPEG4/DIVX/ASP/WMV/AVI | ||
| Audio Format | WAVE/MP3/WMA/AAC | ||
| Image Format | JPEG/BMP/TIFF/PNG/GIF | ||
| Image Resolution | 480P/720P/1080P/3840P | ||
Shenzhen Avlink Technology is a leading manufacturer specializing in high-quality digital signage and innovative display solutions. With a 4,000-square-meter factory and a dedicated R&D team of 6 experts, we deliver customized digital display screens tailored to your unique needs—providing design drawings within just 1 day.
Comprehensive Product Range – Offering 1,000+ digital advertising screens, including:
Fast Production & Global Reach
3 days lead time for quick delivery
10+ years of export experience, shipping to 70+ countries
Certified with COO, CE-LVDS, CE-EMC, FCC, RoHS, CSA, and KC, SGS, Bureau Veritas
End-to-End Support
On-site installation services for seamless deployment, available in Israel, Italy, France, Netherlands, Germany, Sweden, Switzerland, USA, Canada, Mexico, Oman, Dubai, China Macau, China Hong Kong etc.
24/7 after-sales support to ensure uninterrupted operation
Avlink combines cutting-edge technology, rapid production, and reliable service to power your digital advertising screens with excellence
