Avlink 19.5 inch Ultra-Wide Stretched Bar LCD Touch Monitor Key Feature

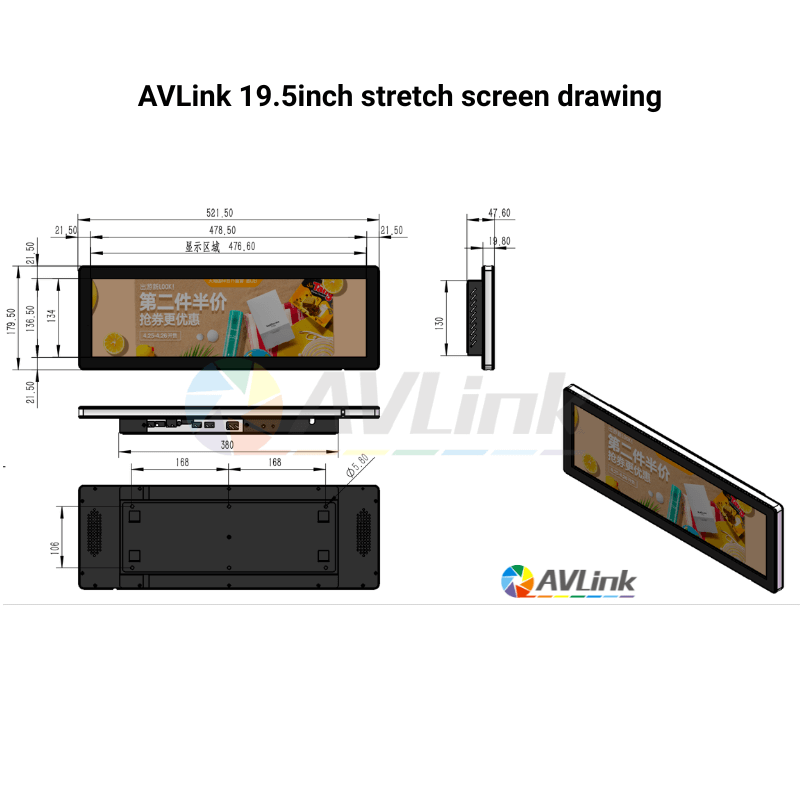

19.5 inch stretch screen active area 476*134mm, monitor dimension 521.5*179.5*47.6mm
19.5 inch stretch display resolution 1920*540
19.5 inch stretch digital signage suitable for point-of-sale, corporate lobbies, hospitality wayfinding, and interactive kiosks
| Model | AVL-ID195S |
|---|---|
| Size | 19.5inch, 24inch, 28.6inch, 34inch, 43.9inch, 58.4inch, 69.3inch, 86inch, 88inch |
| Touch | Capacitive touch screen |
| Resolution | 1920*540 |
| Operating system | Android 9/11/13/14, HDMI input, Windows 10/11 Pro |
| Color | Black, RAL color option, White |
| Application | Indoor |
| Production Time | 3-5 days |
20 inch Ultra-Wide Stretched Bar LCD Touch Monitor, resolution 1920*540, active area 476*134mm, PCAP touch available, HDMI input/Android/Windows OS option. Call now!
Engineered for elegance and impact, the AVL-ID195S redefines digital signage with its distinctive ultra-wide 19.5-inch format. This sleek, stretched display combines a cinematic 1920×540 resolution with a remarkably slim profile, offering a modern alternative to conventional screens for spaces where width, not height, creates the wow factor.
Key Features:
Cinematic Format: An expansive 476x134mm display area provides a wide, banner-like canvas perfect for dynamic headlines, scrolling tickers, and immersive brand visuals.
Slim & Versatile Design: With a depth of just 47.6mm and a weight of 5kg, it integrates seamlessly into retail shelves, reception desks, and modern architectural elements as a wall-mounted or embedded solution.
Vibrant Visual Performance: 350 nits brightness, 178° viewing angles, and 16.7 million colors ensure crisp, engaging content in a variety of lighting conditions.
Smart & Configurable: Choose a simple HDMI input, or opt for an integrated Android or Windows OS to create a powerful, all-in-one solution for interactive or scheduled content.
Ideal for retail point-of-sale, corporate lobbies, hospitality wayfinding, and interactive kiosks, the AVL-ID195S turns narrow spaces into powerful digital statements.
| Specifications | ||
| TFT Panel | ||
| Model No. | AVL-ID195S | |
| Panel size | 19.5 inch TFT-LCD | |
| Display area(mm)/mode(H*V) | 476*134 | |
| Maximum resolution | 1920*540 | |
| Display color | 16.7M | |
| Brightness (nits) | 350 nits | |
| Contrast | 1000:1 | |
| Visual angle | 178°/178° | |
| Response time | 5ms | |
| Life(hrs) | >60,000(hrs) | |
| Interface (optional) | HDMI input | |
| Operating system(optional) | ||
| Operating system | Android 7/9/11 | |
| RAM | 2G/4G/8G | |
| ROM | 16G/32G/64G | |
| Interface | LAN, USB | |
| Operating system(optional) | ||
| Operating system | Windows 10/11 pro, i5/i7, generation 4th/6th/12th | |
| RAM | 4G/8G | |
| ROM | 128G/256G/512G | |
| Interface | LAN, USB | |
| Appearance | ||
| Color/appearance | Black, White, customized | |
| Case | Metal case SPCC | |
| Dimension(H*W*D)mm | 521.5*179.5*47.6mm | |
| Net Weight | 5kg | |
| Installation | Wall-mounted / embedded | |
| Electricity | ||
| Power supply | AC 100-240V | |
| Power consumption | 30w | |
| Standby power consumption | <5w | |
| Speaker | Yes | |
| Touch | Capacitive touch screen optional | |
| Temperature | ||
| Working temperature | 0℃～45℃ | |
| Storage temperature | -10℃~60℃ | |
| Working humidity | 10%~85% | |
| Storage humidity | 5%~95% | |
| Detailed functions | ||
| Video Format | MPEG1/MPEG2/MPEG4/DIVX/ASP/WMV/AVI | |
| Audio Format | WAVE/MP3/WMA/AAC | |
| Image Format | JPEG/BMP/TIFF/PNG/GIF | |
| Image Resolution | 480P/720P/1080P | |
Shenzhen Avlink Technology is a leading manufacturer specializing in high-quality digital signage and innovative display solutions. With a 4,000-square-meter factory and a dedicated R&D team of 6 experts, we deliver customized digital display screens tailored to your unique needs—providing design drawings within just 1 day.
Comprehensive Product Range – Offering 1,000+ digital advertising screens, including:
Fast Production & Global Reach
3 days lead time for quick delivery
10+ years of export experience, shipping to 70+ countries
Certified with COO, CE-LVDS, CE-EMC, FCC, RoHS, CSA, and KC, SGS, Bureau Veritas
End-to-End Support
On-site installation services for seamless deployment, available in Israel, Italy, France, Netherlands, Germany, Sweden, Switzerland, USA, Canada, Mexico, Oman, Dubai, China Macau, China Hong Kong etc.
24/7 after-sales support to ensure uninterrupted operation
Avlink combines cutting-edge technology, rapid production, and reliable service to power your digital advertising screens with excellence
